DG1EG Series

Catalog

CONN HEADER VERT 2POS 2.5MM

Part	Mated Stacking Heights	Shrouding	Style	Insulation Color	Number of Rows	Connector Type	Current Rating (Amps)	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Material Flammability Rating	Termination	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions Loaded	Contact Finish - Post	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating

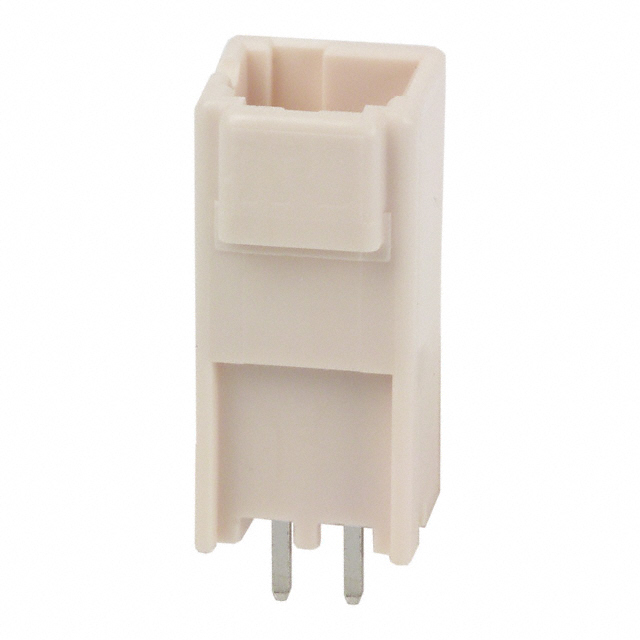

Hirose Electric Co Ltd DF1EG-2P-2.5DSA	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	2	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

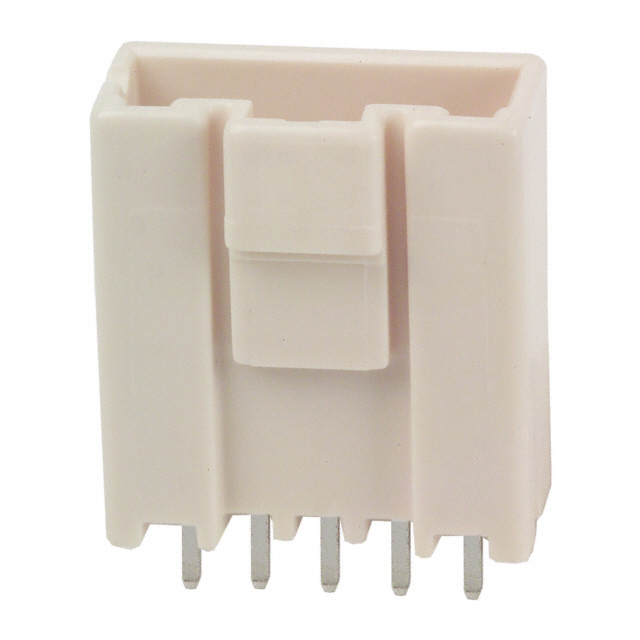

Hirose Electric Co Ltd DF1EG-5P-2.5DSA(05)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	5	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

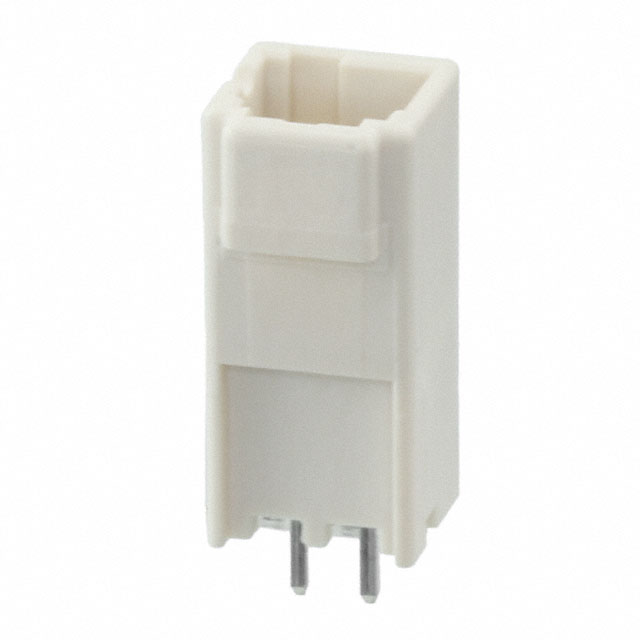

Hirose Electric Co Ltd DF1EG-2P-2.5DSA(35)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	2	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

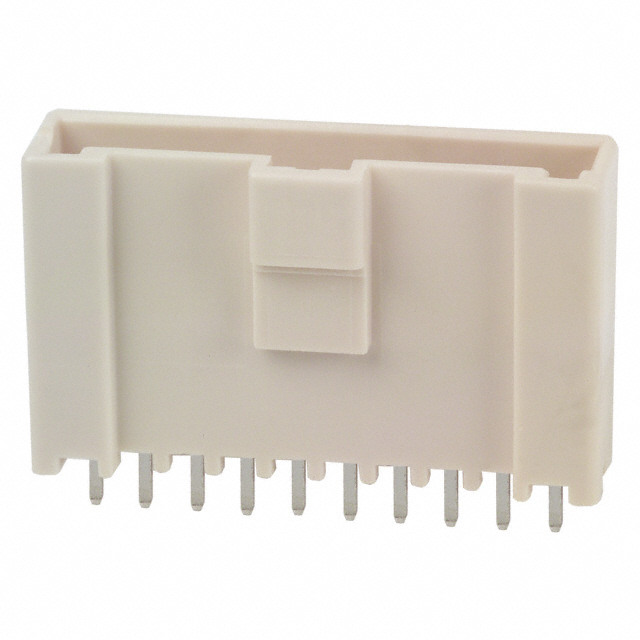

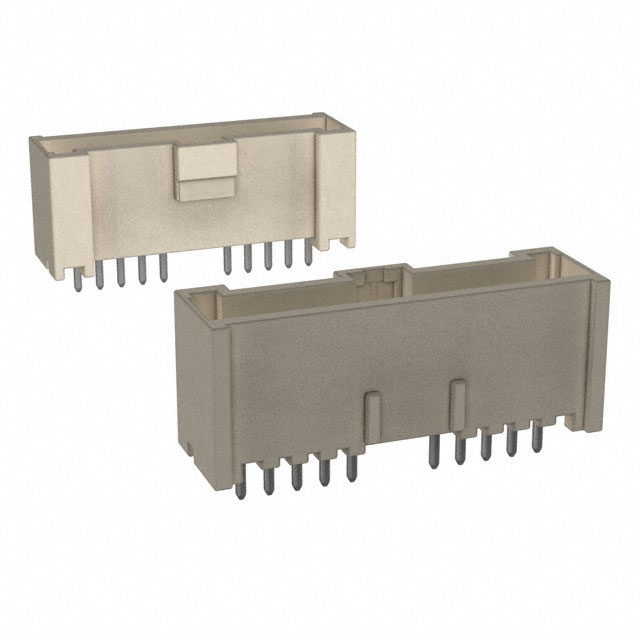

Hirose Electric Co Ltd DF1EG-10P-2.5DSA(05)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	10	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

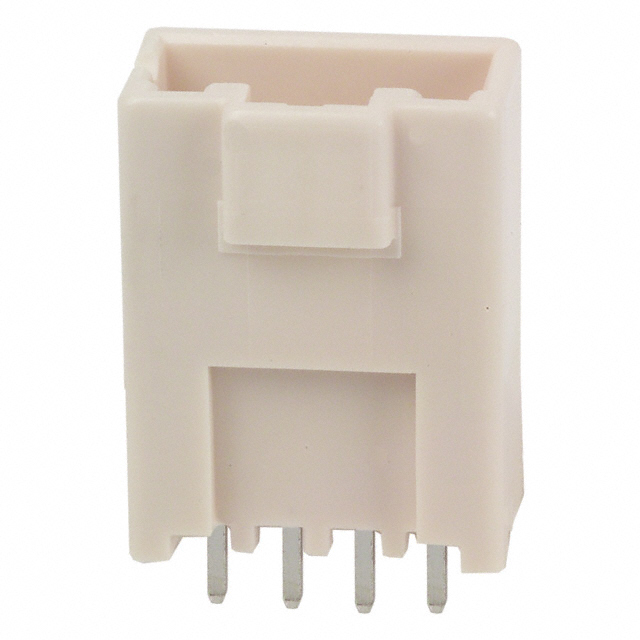

Hirose Electric Co Ltd DF1EG-4P-2.5DSA(05)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	4	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

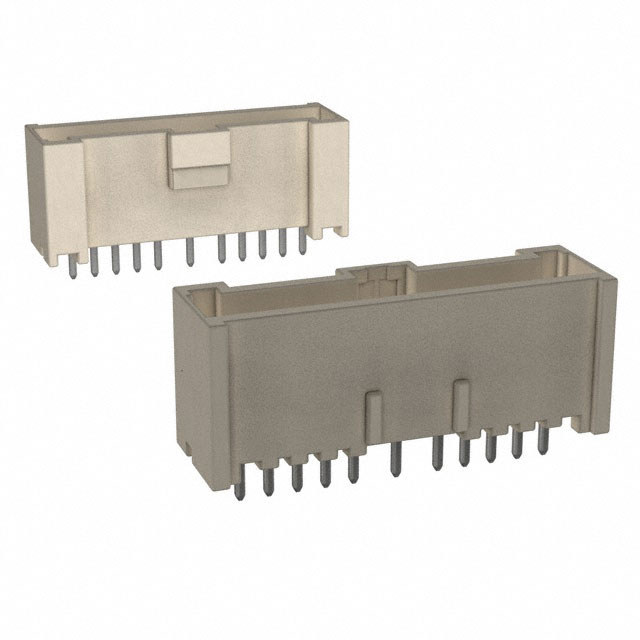

Hirose Electric Co Ltd DF1EG-11P-2.5DSA(35)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	11	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

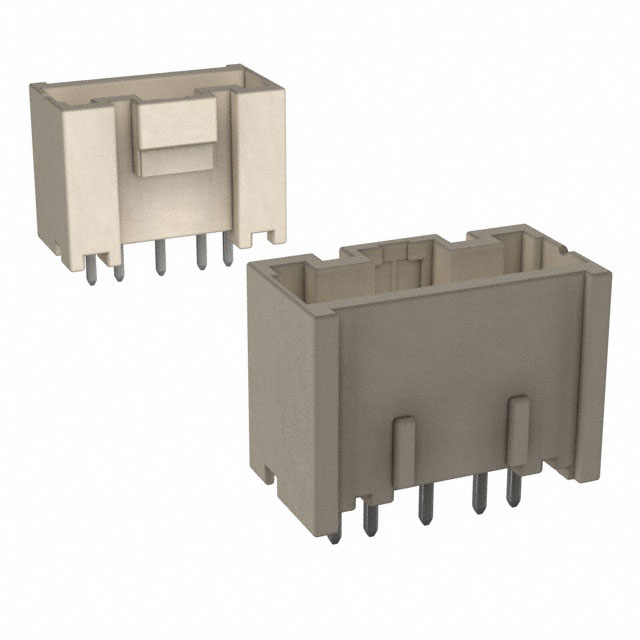

Hirose Electric Co Ltd DF1EG-5P-2.5DSA	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	5	UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm

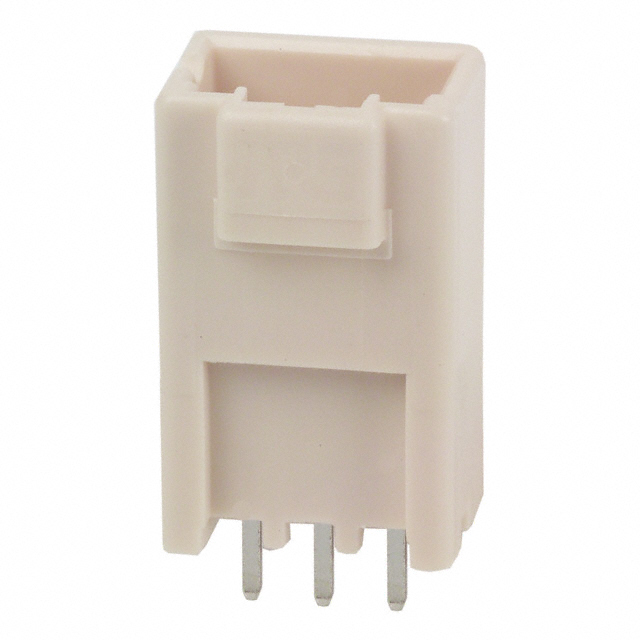

Hirose Electric Co Ltd DF1EG-3P-2.5DSA(05)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)		UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm
Hirose Electric Co Ltd DF1EG-10P-2.5DSA(36)	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)	10	UL94 V-0	Solder	Latch Holder			All		Brass	0.177 in	4.5 mm	8 µin	0.203 µm	Gold
Hirose Electric Co Ltd DF1EG-3P-2.5DSA	14.3 mm 15.8 mm 19.8 mm	Shrouded - 4 Wall	Board to Cable/Wire	Natural	1	Header	3 A	Through Hole	0.118 in	3 mm	Square	85 °C	-35 °C	Male Pin	2.5 mm	0.098 in	Nylon Polyamide (PA)		UL94 V-0	Solder	Latch Holder	39.4 µin	1 µm	All	Tin	Brass	0.177 in	4.5 mm
