DF3-2 Series

Catalog

CONN RCPT 2POS 0.079 TIN PCB

Part	Insulation Material	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Current Rating (Amps)	Insulation Height	Insulation Height	Material Flammability Rating	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Number of Positions	Style	Termination	Number of Rows	Connector Type	Number of Positions Loaded	Voltage Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish - Mating	Note	Color	Pitch [x]	Pitch [x]	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Features	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Wire Gauge

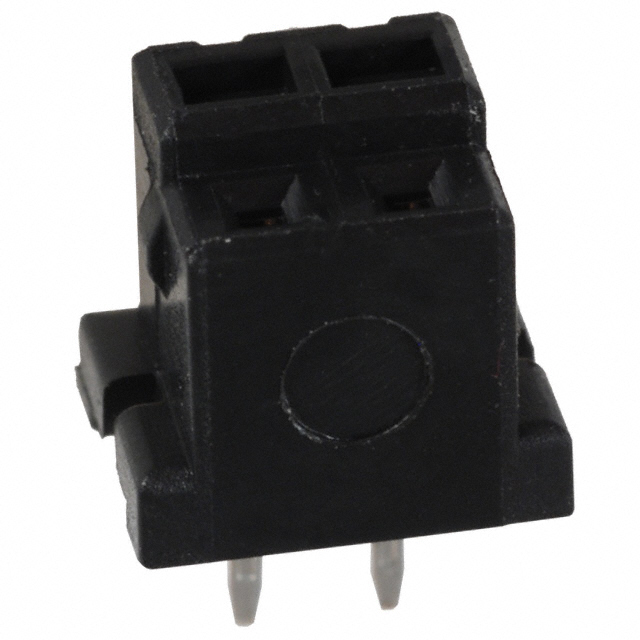

Hirose Electric Co Ltd DF3-2S-2DSA(25)	Nylon Polyamide (PA)	78.7 µin	2 µm	Square	Phosphor Bronze	78.7 µin	2 µm	Female Socket	85 °C	-30 ░C	0.079 "	2 mm	Through Hole	Black	3 A	5.9 mm	0.232 in	UL94 V-0	6.6 mm	7.5 mm	2	Board to Board Cable	Solder	1	Receptacle	All	30 VAC	Tin	0.118 in	3 mm	Friction Lock
Hirose Electric Co Ltd DF3-2S-2DSA(20)	Nylon Polyamide (PA)			Square	Phosphor Bronze			Female Socket	85 °C	-30 ░C	0.079 "	2 mm	Through Hole	Black	3 A	5.9 mm	0.232 in	UL94 V-0	6.6 mm	7.5 mm	2	Board to Board Cable	Solder	1	Receptacle	All	30 VAC	Tin	0.118 in	3 mm	Friction Lock
Hirose Electric Co Ltd DF3-2S-2DSA(50)	Nylon Polyamide (PA)			Square	Phosphor Bronze			Female Socket	85 °C	-30 ░C	0.079 "	2 mm	Through Hole	Black	3 A	5.9 mm	0.232 in	UL94 V-0	6.6 mm	7.5 mm	2	Board to Board Cable	Solder	1	Receptacle	All	30 VAC	Tin	0.118 in	3 mm	Friction Lock	Gold
Hirose Electric Co Ltd DF3-2S-2C(17)								Female Socket					Free Hanging (In-Line)								2			1	Receptacle								Contacts Not Included	Gray	0.079 in	2 mm	Crimp
Hirose Electric Co Ltd DF3-2428SCFC(07)																																					Crimp	24 AWG	28 AWG	Socket

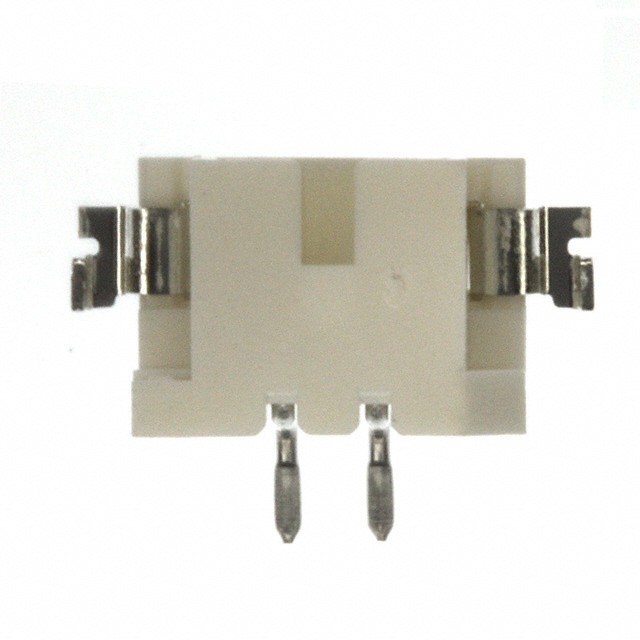

Hirose Electric Co Ltd DF3-2P-2H(20)	Nylon Polyamide (PA)			Circular	Brass			Male Pin	105 ░C	-55 C	0.079 "	2 mm	Right Angle Surface Mount	Beige	3 A	5.6 mm	0.22 in	UL94 V-0			2	Board to Board Cable	Solder	1	Header	All		Tin			Push-Pull										Board Guide	Shrouded - 4 Wall

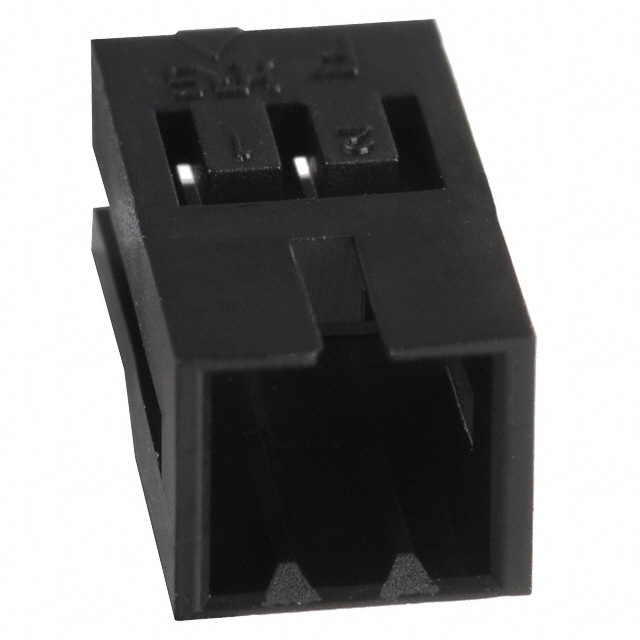

Hirose Electric Co Ltd DF3-2EP-2C	Nylon Polyamide (PA)							Male Pin	105 ░C	-55 C			Free Hanging (In-Line)								2			1	Plug								Contacts Not Included	Black	0.079 in	2 mm	Crimp
Hirose Electric Co Ltd DF3-2S-2C(19)								Female Socket					Free Hanging (In-Line)								2			1	Receptacle								Contacts Not Included	Brown	0.079 in	2 mm	Crimp

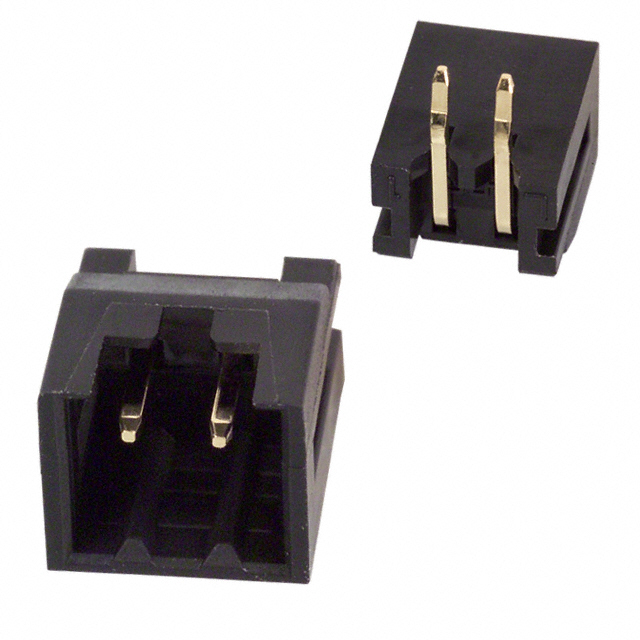

Hirose Electric Co Ltd DF3-2P-2DS(22)	Nylon Polyamide (PA)			Square	Brass			Male Pin	105 ░C	-55 C	0.079 "	2 mm	Right Angle Through Hole	Black	3 A	5 mm	0.197 "	UL94 V-0			2	Board to Board Cable	Press-Fit Solder	1	Header	All					Push-Pull	Gold										Shrouded - 4 Wall	0.114 in	2.9 mm	0.122 in	3.1 mm
Hirose Electric Co Ltd DF3-22SCF(40)																																					Crimp			Socket							22 AWG
