MDBT53V Series
Manufacturer: Raytac
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD 802.15.4 BT CHIP SMD
| Part | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Utilized IC / Part | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Antenna Type | Sensitivity | Power - Output | Current - Transmitting (Max) | Current - Transmitting (Min) | Frequency | RF Family/Standard | Package / Case | Current - Receiving (Max) | Current - Receiving (Min) | Protocol | Serial Interfaces | Data Rate | Memory Size (Flash) | Memory Type | Memory Size ({type}) | Memory Size (RAM) | Memory Size (SRAM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

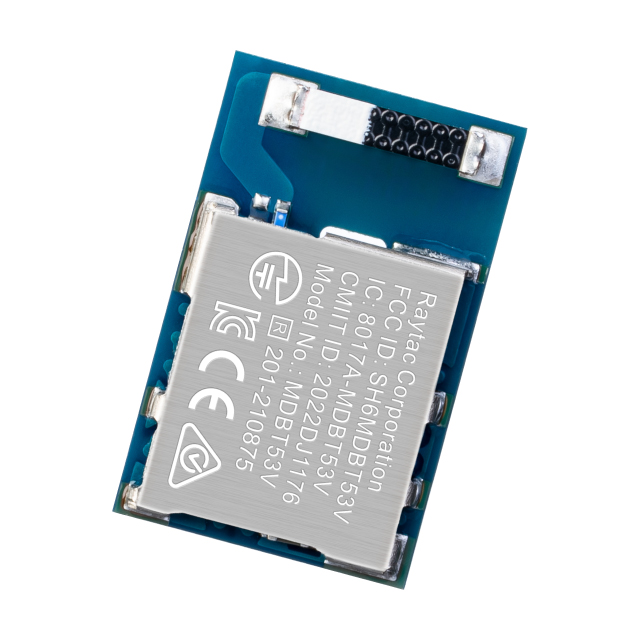

 Raytac | Surface Mount | -40 °C | 105 °C | nRF5340 | 1.7 V | 5.5 V | Chip | -104 dBm | 3 dB | 11.3 mA | 1.5 mA | 2.4 GHz | 802.15.4 Bluetooth | 39-SMD Module | 7.9 mA | 2.7 mA | ANT+ Bluetooth v5.4 Thread Zigbee® | ADC GPIO I2C I2S PWM SPI UART | 2 Mbps | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB |

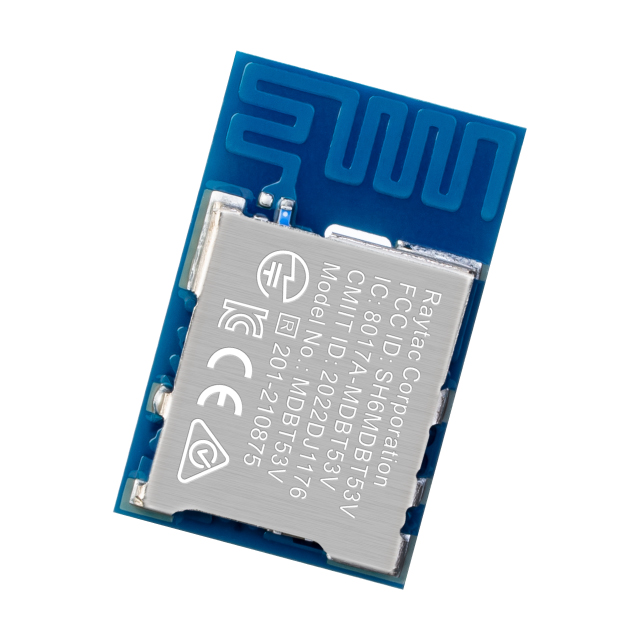

 Raytac | Surface Mount | -40 °C | 105 °C | nRF5340 | 1.7 V | 5.5 V | PCB Trace | -104 dBm | 3 dB | 11.3 mA | 1.5 mA | 2.4 GHz | 802.15.4 Bluetooth | 39-SMD Module | 7.9 mA | 2.7 mA | ANT+ Bluetooth v5.4 Thread Zigbee® | ADC GPIO I2C I2S PWM SPI UART | 2 Mbps | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB |
