RM15QRD Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT FMALE 4POS SOLDER CUP
| Part | Contact Finish - Mating | Shell Finish | Orientation | Primary Material | Connector Type | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Number of Positions | Color | Shielding | Insert Material | Fastening Type | Voltage Rating | Material Flammability Rating | Shell Size - Insert [custom] | Current Rating (Amps) | Mounting Type | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

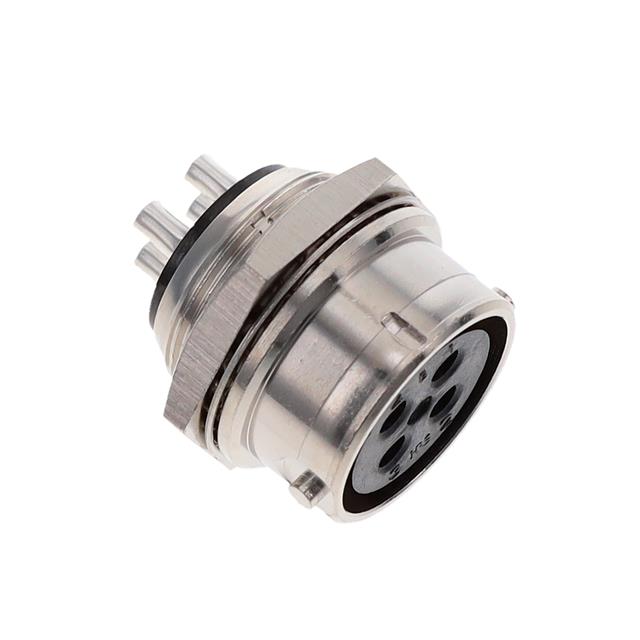

 Hirose Electric Co Ltd | Silver | Nickel | Keyed | Metal | Receptacle Female Sockets | Zinc Alloy | 85 °C | -25 °C | Bulkhead - Rear Side Nut | 4 | Silver | Unshielded | Polyphenylene Sulfide (PPS) | Push-Twist | 500 VAC 700 VDC | UL94 V-0 | 15 | 10 A | Panel Mount | Copper Alloy | ||

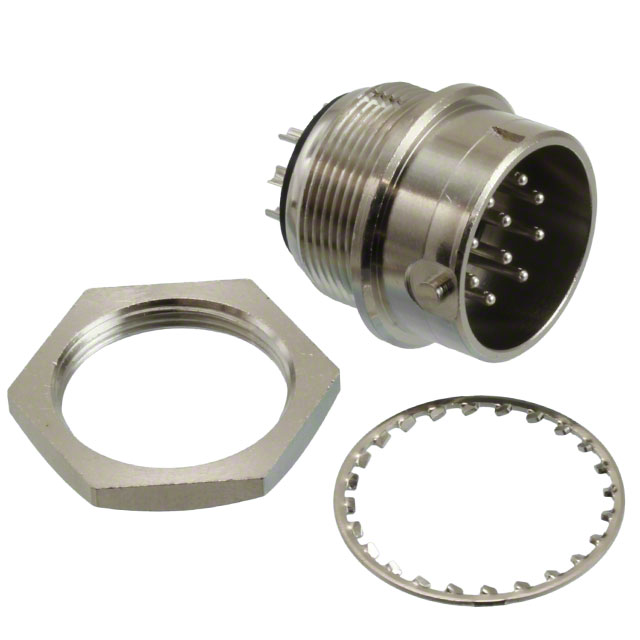

 Hirose Electric Co Ltd | Silver | Nickel | Keyed | Metal | Receptacle Male Pins | Brass | 85 °C | -25 °C | Bulkhead - Rear Side Nut | 10 | Silver | Diallyl Phthalate (DAP) | Push-Twist | 350 VAC 490 VDC | UL94 V-0 | 15 | 5 A | Panel Mount | Copper Alloy | 78.7 µin | 2 µm | |

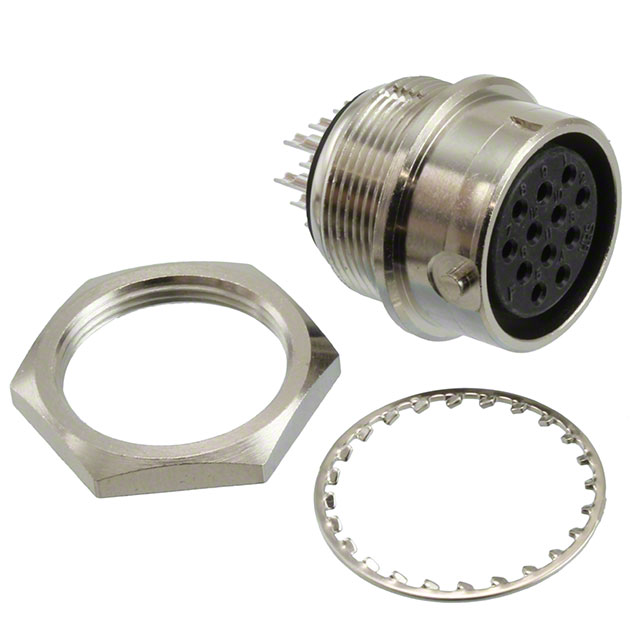

Hirose Electric Co Ltd | Silver | Nickel | Keyed | Metal | Receptacle Female Sockets | Brass | 85 °C | -25 °C | Bulkhead - Rear Side Nut | 12 | Silver | Unshielded | Diallyl Phthalate (DAP) | Push-Twist | 350 VAC 490 VDC | UL94 V-0 | 15 | 5 A | Panel Mount | Copper Alloy | ||
 Hirose Electric Co Ltd | Silver | Nickel | Keyed | Metal | Receptacle Female Sockets | Brass | 85 °C | -25 °C | Bulkhead - Rear Side Nut | 12 | Silver | Diallyl Phthalate (DAP) | Push-Twist | 350 VAC 490 VDC | UL94 V-0 | 15 | 5 A | Panel Mount | Copper Alloy | 196.9 µin | 5 µm | |
Hirose Electric Co Ltd | Silver | Keyed | Receptacle Female Sockets | 85 °C | -25 °C | Bulkhead - Rear Side Nut | 2 | Silver | Unshielded | Push-Twist | 600 VAC 840 VDC | UL94 V-0 | 15 | 10 A | Panel Mount | |||||||
Hirose Electric Co Ltd | Silver | Keyed | Receptacle Female Sockets | 85 °C | -25 °C | Bulkhead - Rear Side Nut | 12 | Silver | Unshielded | Push-Twist | 350 VAC 490 VDC | UL94 V-0 | 15 | 5 A | Panel Mount |
