1010979 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

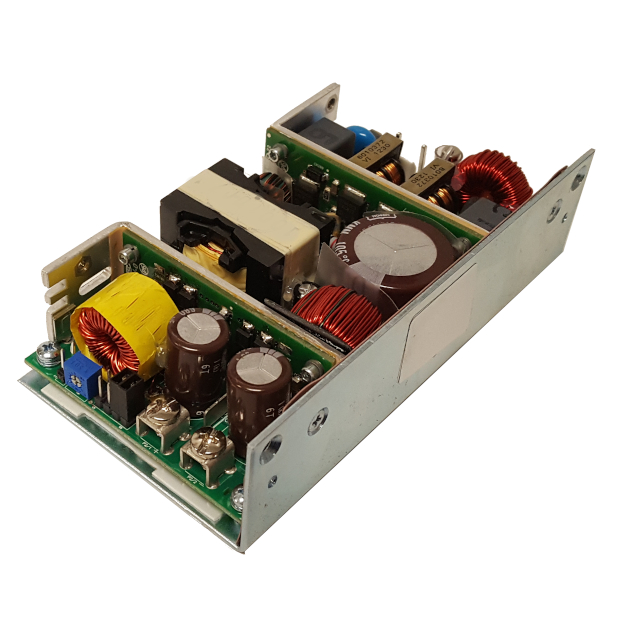

AC/DC CONVERTER 15V 100W
| Part | Efficiency | Voltage - Output 1 | Standard Number | Type | Current - Output 1 | Number of Outputs | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Features | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 85 % | 15 V | 60601-1; 62368-1 | Chassis | 6.7 A | 1 | 100 W | 70 °C | 0 °C | ITE (Commercial) Medical | Adjustable Output Remote Sense Universal Input | 100 VAC | 240 VAC | 2.59 " 4.81 " 33 mm 33.02 mm 65.8 mm 122.2 mm | CE cURus TUV UKCA | Chassis Mount |
