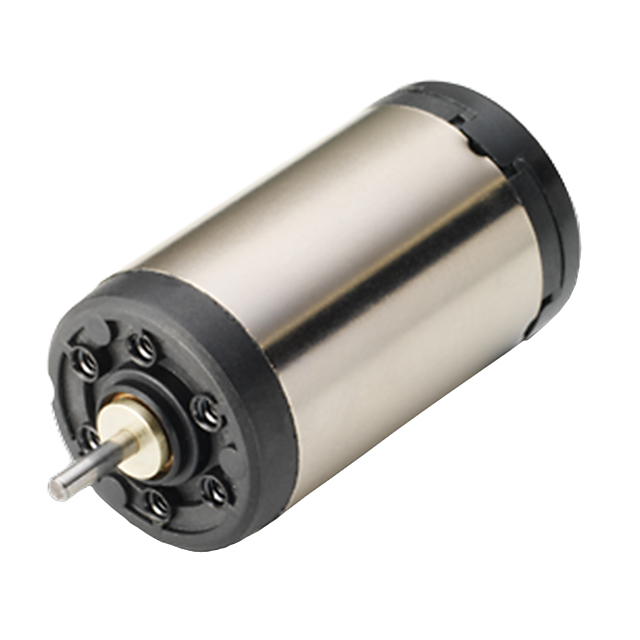

16G88 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 8200 RPM 9V
| Part | Weight | Weight | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | RPM | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Termination Style | Power - Rated | Function | Type | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Motor Type | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 24.04 g | 0.053 lb | 0.754 oz-in | 5.33 mNm | 8200 RPM | 7.5 mm | 0.295 " | Solder Tab | 4.5 W | Standard | DC Motor | 9 V | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 10 mm | 0.394 in | Brushed | 0.629 in | Round | 16 mm |
Portescap | 24.04 g | 0.053 lb | 0.665 oz-in | 4.7 mNm | 9700 RPM | 7.5 mm | 0.295 " | Solder Tab | 4.5 W | Standard | DC Motor | 12 VDC | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 10 mm | 0.394 in | Brushed | 0.629 in | Round | 16 mm |
