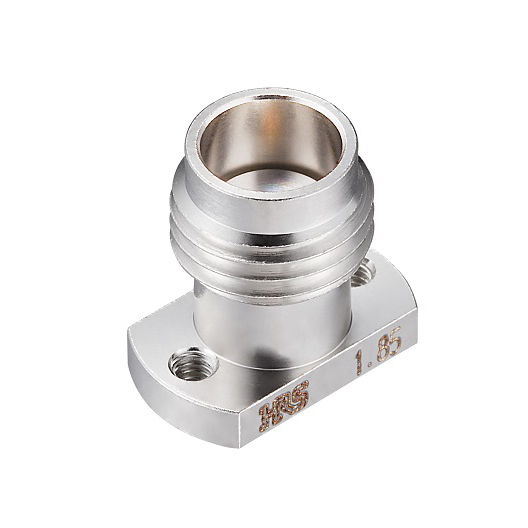

HV-R Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
RECEPTACLE, IEC, 1POS., SCREW FI
| Part | Dielectric Material | Center Contact Plating | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mounting Feature | Frequency - Max [Max] | Shield Termination | Number of Ports | Housing Color | Mounting Type | Contact Termination | Center Contact Material | Impedance | Connector Type | Connector Style | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Gold | 500 | Brass | -55 C | 125 °C | Nickel | Flange | 71 GHz | Screw | 1 | Silver | Surface Mount | Compression | Beryllium Copper | 50 Ohms | Receptacle Female Socket | 1.85 mm | Threaded | |
Hirose Electric Co Ltd | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Gold | 500 | Brass | -55 C | 125 °C | Nickel | Flange | 67 GHz | Screw | 1 | Silver | Surface Mount | Compression | Beryllium Copper | 50 Ohms | Receptacle Female Socket | 1.85 mm | Threaded | Mounting Hardware |
