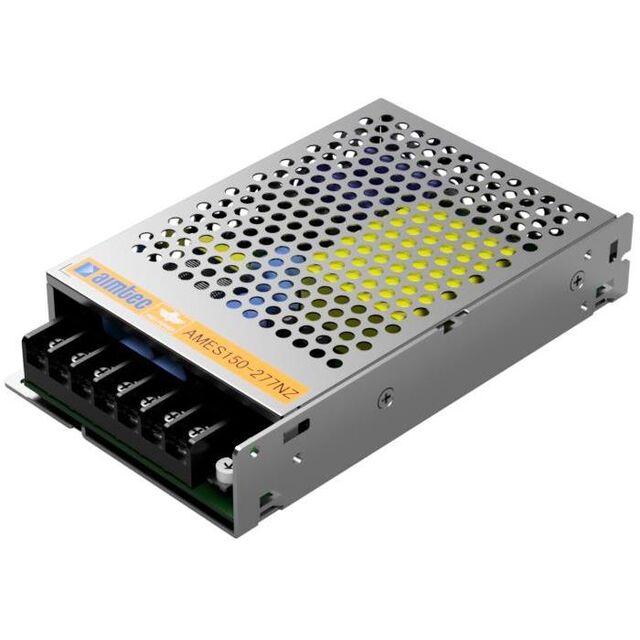

AMES150 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 15V 150W
| Part | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Features | Standard Number | Current - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Applications | Mounting Type | Voltage - Isolation | Power (Watts) | Approval Agency | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Type | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 15 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 10 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 150 W | CB CE EN IEC UL | 87 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Conformal Coated Enclosed | |
aimtec | 15 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 10 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 150 W | CB CE EN IEC UL | 87 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Enclosed | |
aimtec | 12 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 12.5 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 150 W | CB CE EN IEC UL | 86 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Enclosed | |
aimtec | 24 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 156 W | CB CE EN IEC UL | 88 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Conformal Coated Enclosed | ||
aimtec | 12 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 12.5 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 150 W | CB CE EN IEC UL | 86 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Conformal Coated Enclosed | |
aimtec | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 4.3 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 155 W | CB CE EN IEC UL | 88 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Enclosed | 36 V | |
aimtec | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 4.3 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 155 W | CB CE EN IEC UL | 88 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Conformal Coated Enclosed | 36 V | |
aimtec | 15 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 10 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 150 W | CB CE EN IEC UL | 87 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Enclosed | |
aimtec | 48 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 3.3 A | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 158 W | CB CE EN IEC UL | 89 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Enclosed | |
aimtec | 24 V | -30 °C | 70 °C | Adjustable Output | 60335-1 62368-1 | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Household Appliances ITE (Commercial) | Chassis Mount | 4000 V | 156 W | CB CE EN IEC UL | 88 % | 85 VAC 120 VDC | 305 VAC 431 VDC | 1 | Enclosed |
