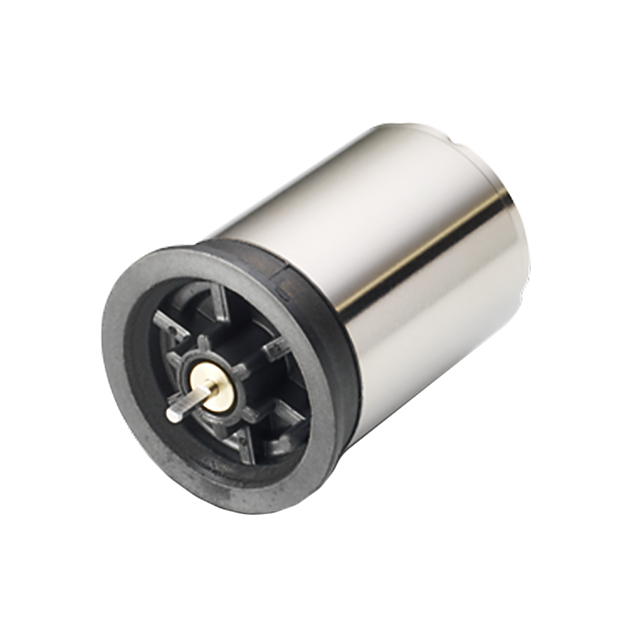

22S28 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 15V
| Part | Weight | Weight | Power - Rated | Size / Dimension | Size / Dimension | Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Function | Voltage - Rated | Termination Style | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Motor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.108 lb | 48.99 g | 2.8 W | Round | 0.866 in 22 mm | DC Motor | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 10000 RPM | Standard | 15 V | Solder Tab | 7.5 mm | 0.295 " | 12 mm | 0.472 in | 3.9 mNm | 0.552 oz-in | Brushed |
Portescap | 0.108 lb | 48.99 g | 2.8 W | Round | 0.866 in 22 mm | DC Motor | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 10000 RPM | Standard | 12 VDC | Solder Tab | 7.5 mm | 0.295 " | 12 mm | 0.472 in | 5 mNm | 0.708 oz-in | Brushed |
Portescap | 0.108 lb | 48.99 g | 2.8 W | Round | 0.866 in 22 mm | DC Motor | 1.5 mm | 0.059 in | 85 °C | -30 ░C | 10000 RPM | Standard | 24 VDC | Solder Tab | 7.5 mm | 0.295 " | 12 mm | 0.472 in | 3.9 mNm | 0.552 oz-in | Brushed |
