TEP 60 Series

Catalog

DC DC CONVERTER 48V 60W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Mounting Type	Number of Outputs	Type	Current - Output (Max) [Max]	Package / Case	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Features	Supplier Device Package	Applications	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max)
Traco Power TEP 60-3618UIR	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	91 %	2250 VDC	Through Hole	1	Isolated Module	1.25 A	Quarter Brick	60 W	-40 C	75 ░C	48 V	Adjustable Output Remote On/Off	Quarter Brick	ITE (Commercial) Railway	CB cURus	75 V	9 V
Traco Power TEP 60-3612UIR	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	89 %	2250 VDC	Through Hole	1	Isolated Module		Quarter Brick	60 W	-40 C	75 ░C	12 V	Adjustable Output Remote On/Off	Quarter Brick	ITE (Commercial) Railway	CB cURus	75 V	9 V	5 A

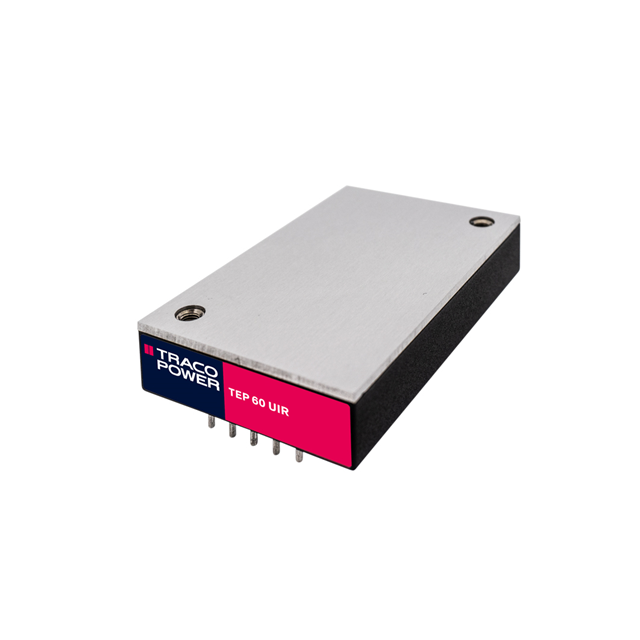

Traco Power TEP 60-7211UIR	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	89 %	3000 V	Through Hole	1	Isolated Module	12 A	Quarter Brick	60 W	-40 C	75 ░C	5 V	Adjustable Output Remote On/Off	Quarter Brick	ITE (Commercial) Railway	CB cURus	160 V	14 V
