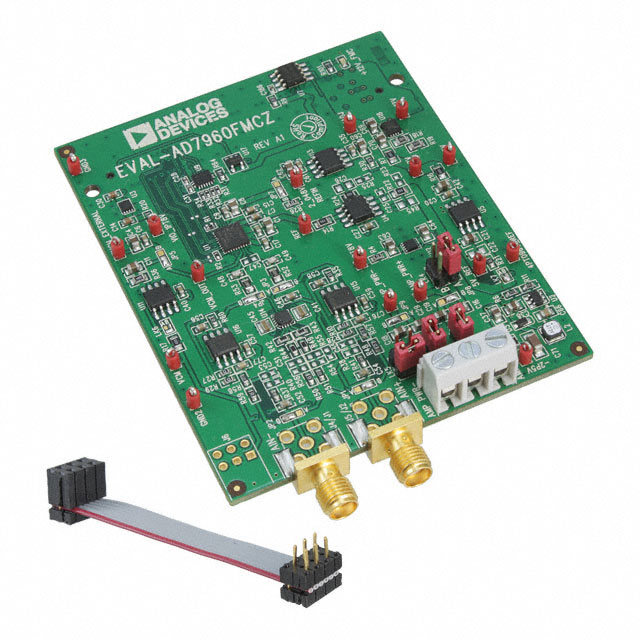

18-Bit, 5 MSPS PULSAR®Differential ADC
Key Features
• Throughput: 5 MSPS
• 18-bit resolution with no missing codes
• SNR 99 dB
• INL +/-0.8 LSB
• DNL +/-0.5 LSB
• True differential analog input voltage range: ±4.096 V or ±5 V
• Low power dissipation (39 mW)
• SAR architecture
• External reference options
• Serial LVDS interface
• 32-lead, 5mm × 5mm LFCSP (QFN)
• See datasheet for more details
Description
AI
The AD7960 is an 18-bit, 5 MSPS charge redistribution successive approximation (SAR), analog-to-digital converter (ADC). The SAR architecture allows unmatched performance both in noise and in linearity. The AD7960 contains a low power, high speed, 18-bit sampling ADC, an internal conversion clock and an internal reference buffer. On the CNV± edge, the AD7960 samples the voltage difference between the IN+ and IN− pins. The voltages on these pins swing in opposite phase between 0 V and 4.096 V/5 V. The reference voltage is applied to the part externally. All conversion results are available on a single LVDS self-clocked or echo-clocked serial interface.The AD7960 is available in a 32-lead LFCSP (QFN) with operation specified from −40°C to +85°C.APPLICATIONSDigital imaging systemsDigital X-raysComputed tomographyIR camerasMRI gradient controlHigh speed data acquisitionSpectroscopyTest equipment
