C0746 Series
Manufacturer: Prysmian Group
Beta
⌘K

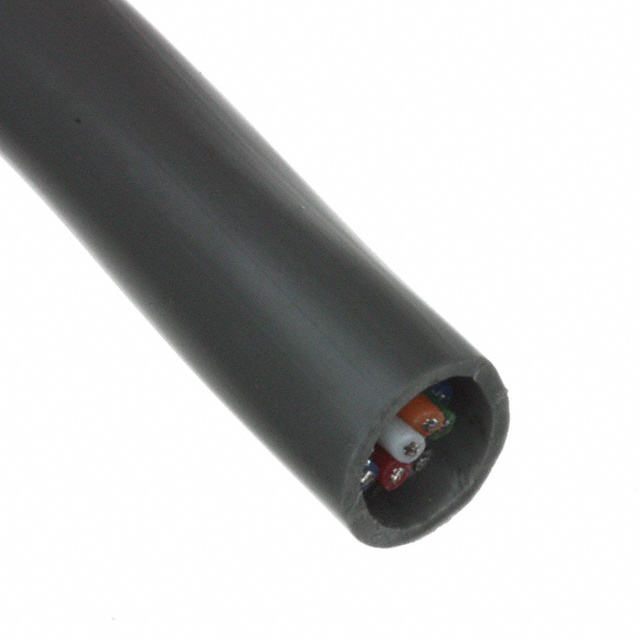

CABLE 15COND 24AWG GRAY SHLD 50'
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Usage | Features | Voltage | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | -20 ░C | 105 ░C | Gray | 15.24 m 304.8 m | 50 ft 1000 ft | 7 | 32 AWG | Copper Tinned | 0.813 mm | 0.032 in | 24 AWG | 15 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | Foil | Computer | Drain Wire | 300 VDC | ||
 Prysmian Group | -20 ░C | 80 °C | Gray | 152.4 m | 500 ft | 7 | 32 AWG | Copper Tinned | 0.813 mm | 0.032 in | 24 AWG | 15 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | Foil | Computer | Drain Wire | 300 VDC | 100 % | Flexfoil® |
Prysmian Group | -20 ░C | 80 °C | Gray | 15.24 m 304.8 m | 50 ft 1000 ft | 7 | 32 AWG | Copper Tinned | 0.813 mm | 0.032 in | 24 AWG | 15 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | Foil | Computer | Drain Wire | 300 VDC | 100 % | Flexfoil® |
Prysmian Group | -20 ░C | 105 ░C | Gray | 152.4 m | 500 ft | 7 | 32 AWG | Copper Tinned | 0.813 mm | 0.032 in | 24 AWG | 15 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | Foil | Computer | Drain Wire | 300 VDC |
