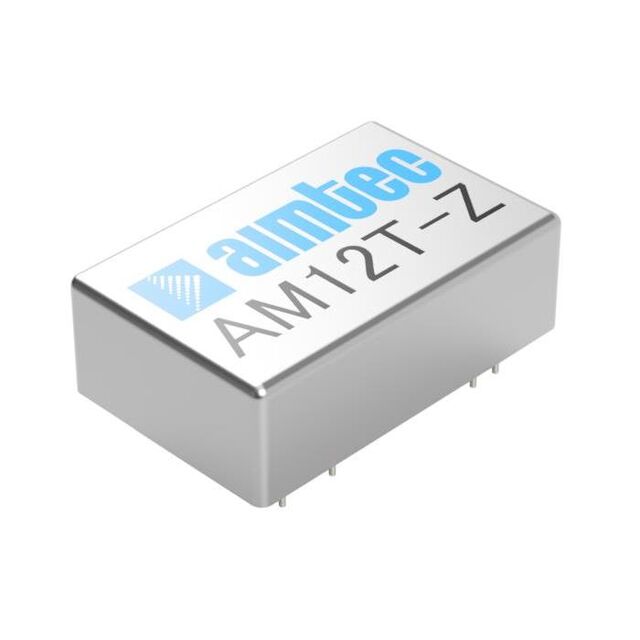

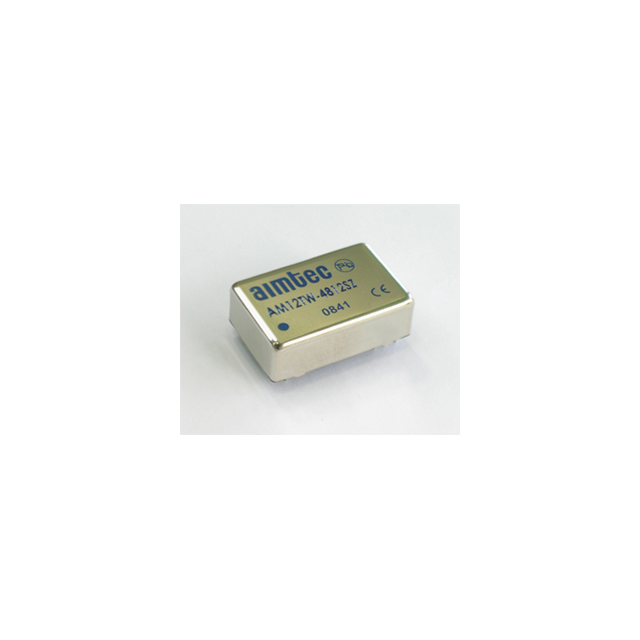

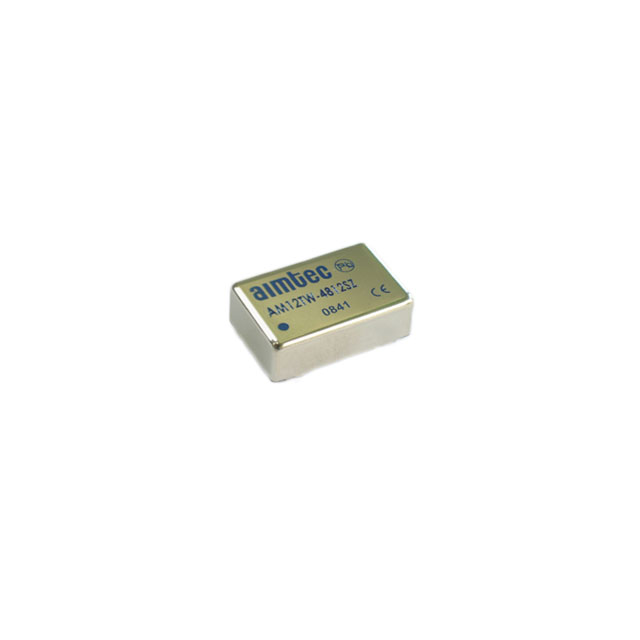

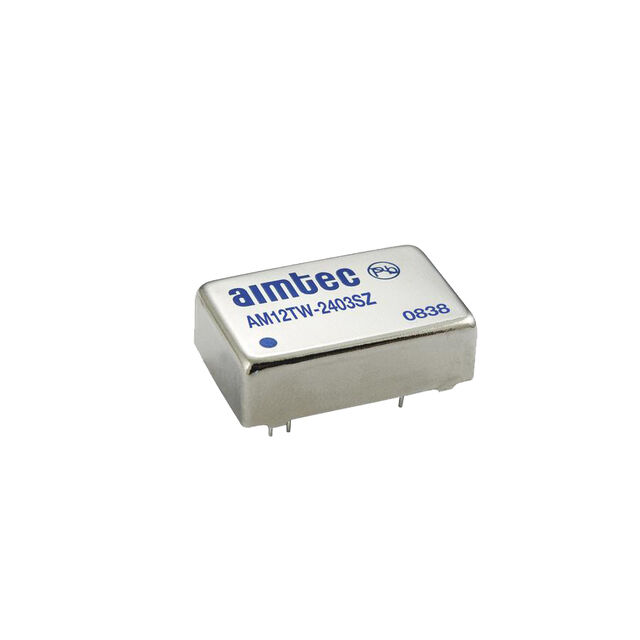

AM12T Series
Manufacturer: aimtec
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER 3.3V 12W
| Part | Number of Outputs | Voltage - Input (Max) | Standard Number | Package / Case | Approval Agency | Efficiency | Applications | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Voltage - Input (Min) | Voltage - Output 1 | Voltage - Isolation | Current - Output (Max) | Power (Watts) | Mounting Type | Type | Features | Operating Temperature (Min) | Operating Temperature (Max) | Package Leads | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 1 | 36 V | 62368-1 | 24-DIP Module | CE EN IEC UL | 87 % | ITE (Commercial) | 0.42 in | 0.8 in | 1.25 in | 9 V | 3.3 V | 1.6 kV | 3.5 A | 12 W | Through Hole | Isolated Module | Remote On/Off | -40 °C | 85 °C | ||
 aimtec | 1 | 18 V | 24-DIP Module | CE | 87 % | ITE (Commercial) | 0.4 in | 0.8 in | 1.25 in | 9 V | 3.3 V | 1.6 kV | 3.5 A | 12 W | Through Hole | Isolated Module | Remote On/Off | -40 °C | 85 °C | |||
 aimtec | 1 | 75 V | 62368-1 | 24-DIP Module | CE EN IEC UL | 89 % | ITE (Commercial) | 0.42 in | 0.8 in | 1.25 in | 18 V | 5.1 V | 1.6 kV | 2.4 A | 12 W | Through Hole | Isolated Module | Remote On/Off | -40 °C | 85 °C | ||
 aimtec | 1 | 36 V | CE | 89 % | ITE (Commercial) | 0.42 in | 0.8 in | 1.25 in | 9 V | 5.1 V | 1.6 kV | 2.4 A | 12 W | Through Hole | Isolated Module | -40 °C | 85 °C | 8 Leads | 24-DIP Module | |||
 aimtec | 1 | 75 V | 24-DIP Module | CE | 89 % | ITE (Commercial) | 0.4 in | 0.8 in | 1.25 in | 36 V | 5 V | 1.6 kV | 2.4 A | 12 W | Through Hole | Isolated Module | Remote On/Off | -40 °C | 85 °C | |||
aimtec | 1 | 18 V | CE | 89 % | ITE (Commercial) | 0.4 in | 0.8 in | 1.25 in | 9 V | 5 V | 1.6 kV | 2.4 A | 12 W | Through Hole | Isolated Module | Remote On/Off | -40 °C | 85 °C | 8 Leads | 23-DIP Module 24-DIP |
