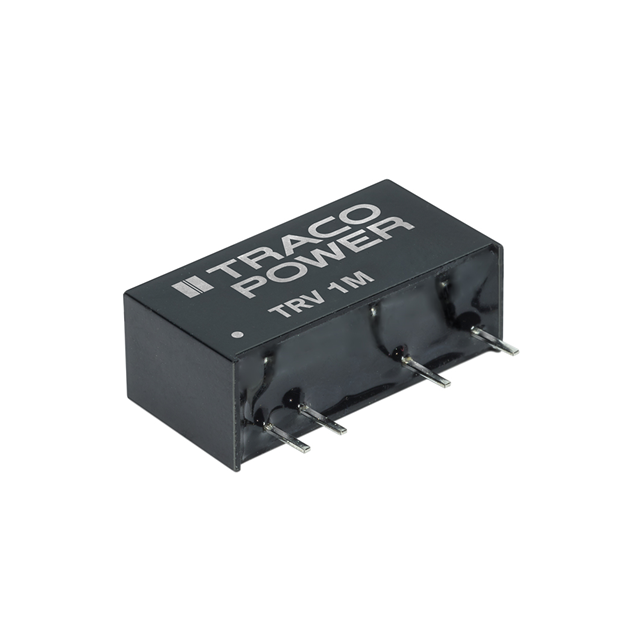

TRV 1 Series

Catalog

DC DC CONVERTER 12V 996MW

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 1	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage - Input (Max) [Max]	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Efficiency	Voltage - Isolation	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Features
Traco Power TRV 1-0512M	996 mW	85 °C	-40 C	ITE (Commercial) Medical	12 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	5.5 V	CB cURus	83 mA	4.5 V	1	9-SIP Module 4 Leads	85 %	5000 V
Traco Power TRV 1-1511M		85 °C	-40 C	ITE (Commercial) Medical	5 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	18 V	CB cURus	200 mA	12 V	1	9-SIP Module 4 Leads	83 %	5000 V
Traco Power TRV 1-1212M	996 mW	85 °C	-40 C	ITE (Commercial) Medical	12 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	14.4 V	CB cURus	83 mA	9.6 V	1	9-SIP Module 4 Leads	84 %	5000 V
Traco Power TRV 1-0522M		85 °C	-40 C	ITE (Commercial) Medical	12 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	5.5 V	CB cURus		4.5 V	2	9-SIP Module 5 Leads	85 %	5000 V	-12 V	42 mA
Traco Power TRV 1-0521M		85 °C	-40 C	ITE (Commercial) Medical	5 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	5.5 V	CB cURus		4.5 V	2	9-SIP Module 5 Leads	85 %	5000 V	-5 V		100 mA	100 mA
Traco Power TRV 1-0510M		85 °C	-40 C	ITE (Commercial) Medical	3.3 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	5.5 V	CB cURus	303 mA	4.5 V	1	9-SIP Module 4 Leads	80 %	5000 V
Traco Power TRV 1-1523M		85 °C	-40 C	ITE (Commercial) Medical	15 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	18 V	CB cURus	34 mA	12 V	2	9-SIP Module 5 Leads	83 %	5000 V	-15 V				34 mA
Traco Power TRV 1-2422M		85 °C	-40 C	ITE (Commercial) Medical	12 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	28.8 V	CB cURus		19.2 V	2	9-SIP Module 5 Leads	81 %	5000 V	-12 V	42 mA
Traco Power TRV 1-1522M		85 °C	-40 C	ITE (Commercial) Medical	12 V	Isolated Module	19.6 mm	12.5 mm	0.77 in	0.49 "	9.9 mm	0.39 in	Through Hole	18 V	CB cURus		12 V	2	9-SIP Module 5 Leads	83 %	5000 V	-12 V	42 mA
Traco Power TRV 1-0519		85 °C	-40 C	ITE (Commercial)	9 V	Isolated Module	19.5 mm	10.2 mm	0.77 in	0.4 "	6.1 mm	0.24 "	Through Hole	5.5 V		110 mA	4.5 V	1	7-SIP Module 4 Leads	86.5 %	3000 V						SCP
