895-056 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 56POS 0.100

...

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Read Out	Number of Rows	Contact Type	Termination	Contact Material	Contact Finish	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch	Pitch	Number of Positions/Bay/Row	Termination Rows [custom]	Number of Rows [custom]	Features
EDAC Inc. 895-056-540-104	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	1	Cantilever	Wire Wrap	Copper Alloy	Gold	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Black	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	56

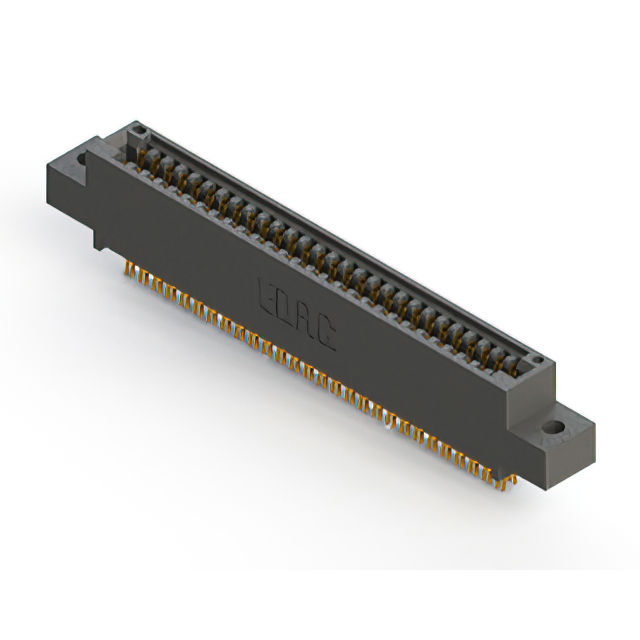

EDAC Inc. 895-056-555-502	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Cantilever	Solder	Copper Alloy	Gold	Non Specified - Dual Edge		0.128 "	3.25 mm	Female	Black	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	28	2	2	Card Extender
EDAC Inc. 895-056-520-812	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Cantilever	Solder	Copper Alloy	Gold	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Female	Black	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	28	2	2
EDAC Inc. 895-056-544-612	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	1	Cantilever	Wire Wrap	Copper Alloy	Gold	Non Specified - Single Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Female	Black	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	56
EDAC Inc. 895-056-523-812	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Cantilever	Solder	Copper Alloy	Gold	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Female	Black	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	28	2	2
EDAC Inc. 895-056-520-602	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	1	Cantilever	Solder	Copper Alloy	Gold	Non Specified - Single Edge		0.128 "	3.25 mm	Female	Black	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	56

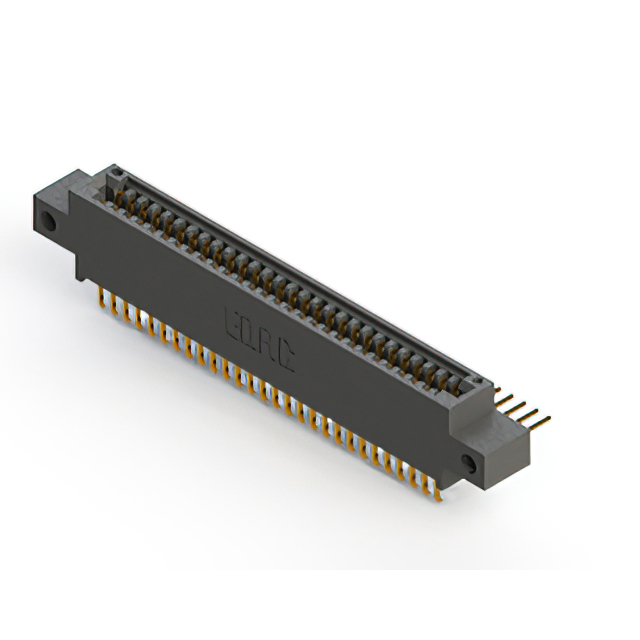

EDAC Inc. 895-056-559-812	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Cantilever	Solder	Copper Alloy	Gold	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Female	Black	Right Angle Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	28	2	2
EDAC Inc. 895-056-560-803	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Cantilever	Solder	Copper Alloy	Gold	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Female	Black	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	28	2	2	Card Extender

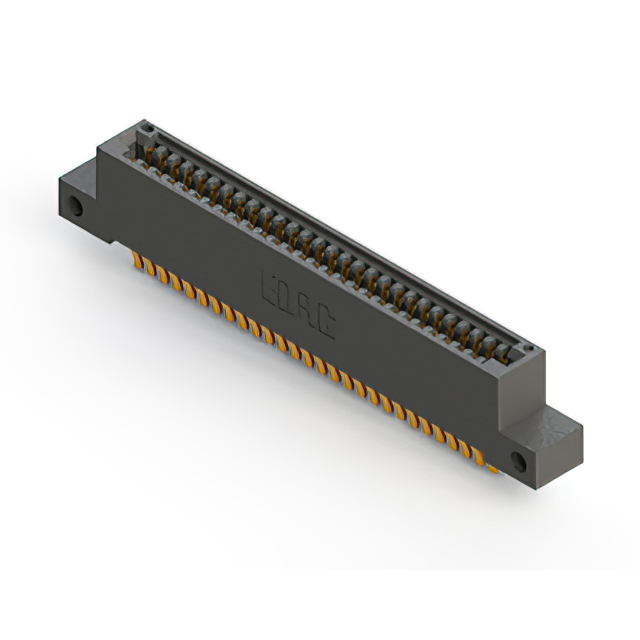

EDAC Inc. 895-056-560-212	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Cantilever	Solder	Copper Alloy	Gold	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Black	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	28	2	2	Card Extender
EDAC Inc. 895-056-523-404	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	1	Cantilever	Solder	Copper Alloy	Gold	Non Specified - Single Edge		0.156 "	3.96 mm	Female	Black	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	56	0.1 "	2.54 mm	56
