1010796 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

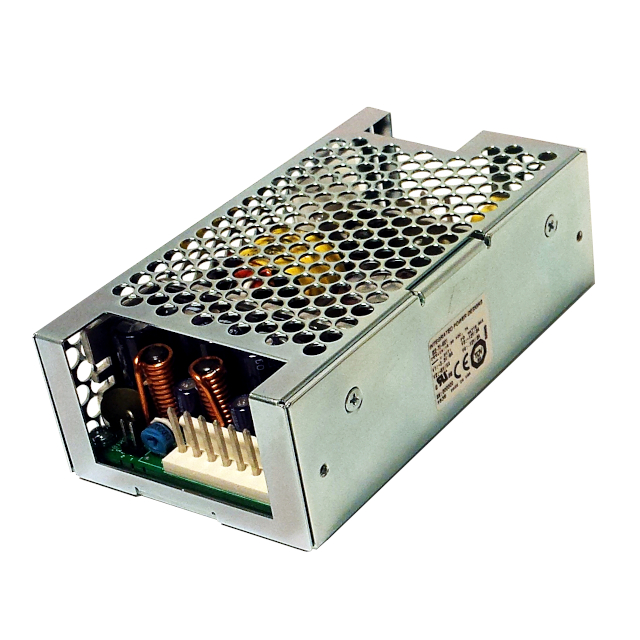

DC/DC CNVRTR 5V 3.3V +/-12V 70W
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Power (Watts) | Number of Outputs | Standard Number | Voltage - Output 4 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 3 | Voltage - Input (Min) [Min] | Current - Output (Max) | Type | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Applications | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 121.6 mm | 37.6 mm | 4.79 in | 2.62 " | 66.5 mm | 1.48 " | CE cURus TUV UKCA | 70 W | 4 | 60601-1; 62368-1 | -12 V | 70 °C | 0 °C | 78 % | 12 V | 18 V | 2 A 5 A 6 A | Enclosed | Chassis Mount | 36 V | 5 V | ITE (Commercial) Medical | 3.3 V |
