RGTV80TK65 Series

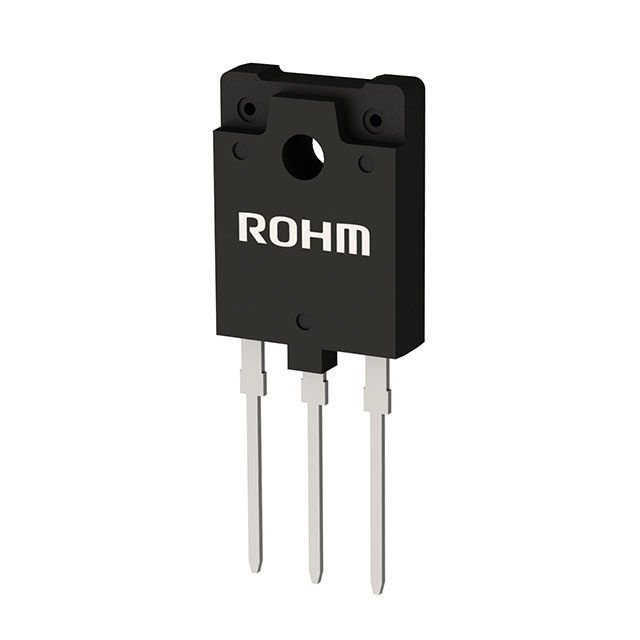

2µs Short-Circuit Tolerance, 650V 23A, TO-3PFM, Field Stop Trench IGBT

Catalog

2µs Short-Circuit Tolerance, 650V 23A, TO-3PFM, Field Stop Trench IGBT

Part	Switching Energy	Current - Collector (Ic) (Max) [Max]	Td (on/off) @ 25°C	IGBT Type	Vce(on) (Max) @ Vge, Ic	Test Condition	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Gate Charge	Package / Case	Supplier Device Package
Rohm Semiconductor RGTV80TK65GVC11	1.02 mJ 710 µJ	39 A	39 ns 113 ns	Trench Field Stop	1.9 V	10 Ohm 15 V 40 A 400 V	85 W	-40 C	175 °C	Through Hole	650 V	81 nC	SC-93-3 TO-3PFM	TO-3PFM

Catalog

2µs Short-Circuit Tolerance, 650V 23A, TO-3PFM, Field Stop Trench IGBT

Key Features

• Low Collector - Emitter Saturation Voltage, High Speed Switching & Low Switching Loss, Short Circuit Withstand Time 2μs, Pb - free Lead Plating ; RoHS Compliant

Description

RGTV80TK65 is a IGBT with low collector - emitter saturation voltage, suitable for PFC, Solar Inverter, UPS, Welding, IH applications.
