TSC210 Series

Catalog

LOW / HIGH SIDE BIDIRECTIONAL, ZERO-DRIFT, CURRENT SENSE AMPLIFIERS

Part	Amplifier Type	Gain Bandwidth Product	Current - Input Bias	Current - Supply	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Mounting Type	Slew Rate	Voltage - Supply Span (Min) [Min]	Number of Circuits	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	-3db Bandwidth	Grade	Supplier Device Package [y]	Supplier Device Package [x]	Qualification

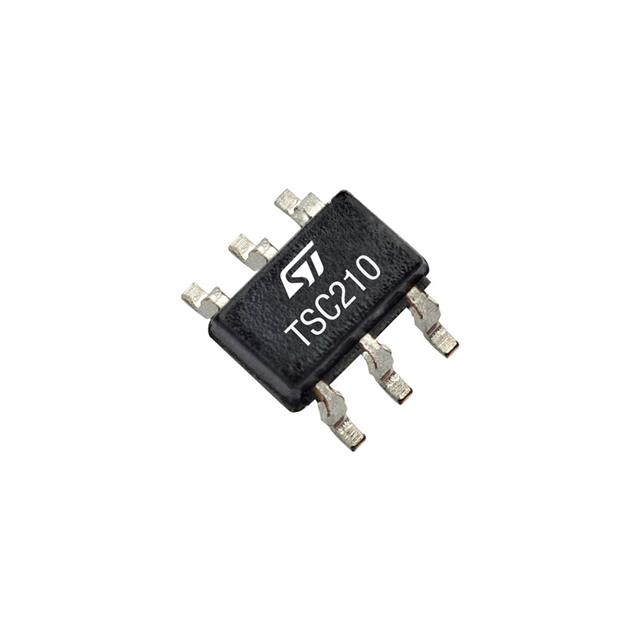

STMicroelectronics TSC210IYCT	Current Sense	25 kHz	28 µA	65 µA	26 V	35 µV	Surface Mount	0.2 V/µs	2.7 V	1	6-TSSOP SC-88 SOT-363	Push-Pull	125 °C	-40 °C	SC-70-6
STMicroelectronics TSC210ICT	Current Sense		28 µA	65 µA	26 V	35 µV	Surface Mount	0.2 V/µs	2.7 V	1	6-TSSOP SC-88 SOT-363		125 °C	-40 C	SC-70-6	25 kHz
STMicroelectronics TSC210IYQT	Current Sense		28 µA	65 µA	26 V	35 µV	Surface Mount	0.2 V/µs	2.7 V	1	10-WFQFN		125 °C	-40 °C	10-QFN	25 kHz	Automotive	1.4	1.8	AEC-Q100
STMicroelectronics TSC210IQT	Current Sense	25 kHz	28 µA	65 µA	26 V	35 µV	Surface Mount Wettable Flank	0.2 V/µs	2.7 V	1	10-WFQFN	Push-Pull	125 °C	-40 °C	10-QFN			1.4	1.8
