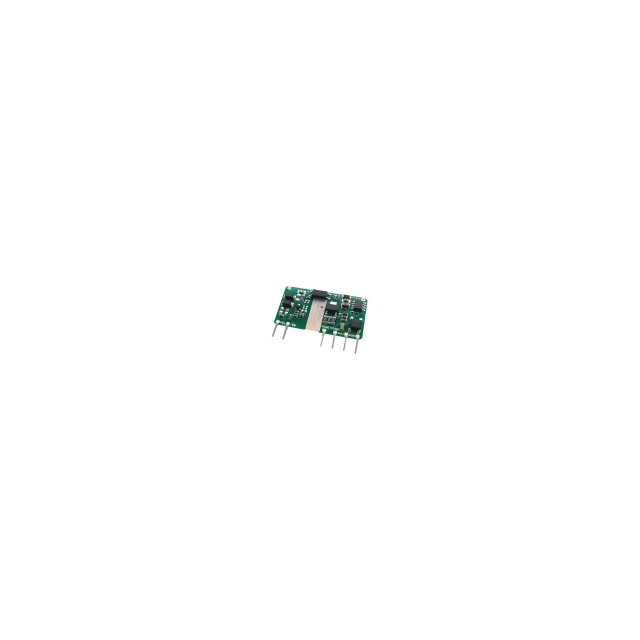

AMEOF15 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 15V 15W
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Line Regulation | Weight [custom] | Weight [custom] | Efficiency | Current - Output (Max) [Max] | Type | Voltage - Input [Min] | Voltage - Input [Max] | Features | Package / Case | Applications | Load Regulation | Mounting Type | Voltage - Output 1 | Power (Watts) | Number of Outputs | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 0.59 in | 1.75 " | 44.5 mm | 24 mm | 0.94 in | 15 mm | -40 °C | 85 °C | 0.5 % | 11 g | 0.024 lb | 84 % | 1 A | Open Frame | 85 VAC 100 V | 305 VAC 430 VDC | Universal Input | 16-SIP Module 6 Leads | ITE (Commercial) | ±1% | Right Angle Through Hole | 15 V | 15 W | 1 | |
aimtec | 0.59 in | 1.75 " | 44.5 mm | 24 mm | 0.94 in | 15 mm | -40 °C | 85 °C | 0.5 % | 11 g | 0.024 lb | 85 % | 625 mA | Open Frame | 85 VAC 100 V | 305 VAC 430 VDC | Universal Input | 16-SIP Module 6 Leads | ITE (Commercial) | ±1% | Right Angle Through Hole | 24 V | 15 W | 1 | |
aimtec | 0.59 in | 1.75 " | 44.5 mm | 24 mm | 0.94 in | 15 mm | -40 °C | 85 °C | 0.5 % | 11 g | 0.024 lb | 1.67 A | Open Frame | 85 VAC 100 V | 305 VAC 430 VDC | Universal Input | 16-SIP Module 6 Leads | ITE (Commercial) | ±1% | Right Angle Through Hole | 9 V | 15 W | 1 | ||
aimtec | 0.94 " | 1.75 " | 44.5 mm | 15 mm | 0.59 in | 24 mm | -40 °C | 85 °C | 0.5 % | 11 g | 0.024 lb | 75 % | 3 A | Open Frame | 85 VAC 100 V | 305 VAC 430 VDC | Universal Input | 16-SIP Module 6 Leads | ITE (Commercial) | Through Hole | 3.3 V | 9.9 W | 1 | 2 % |
