JR16PK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

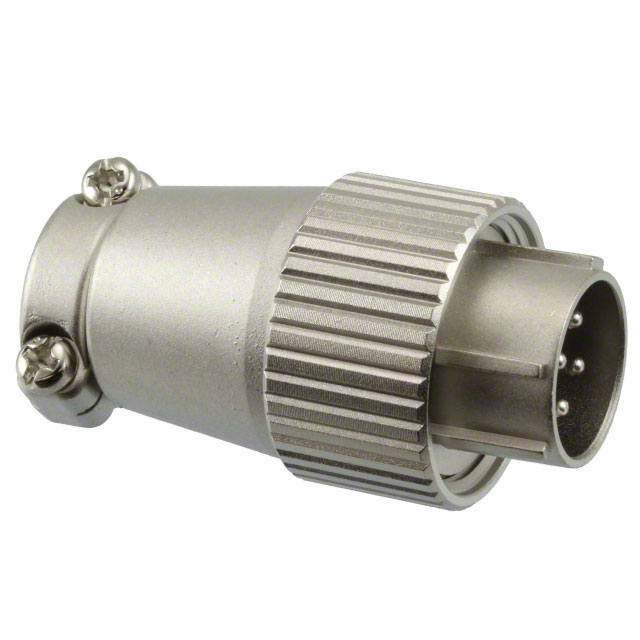

CONN PLUG MALE 7P SILV SLDR CUP
| Part | Mounting Type | Shell Size - Insert | Backshell Material, Plating | Insert Material | Shell Material | Primary Material | Number of Positions | Cable Opening | Cable Opening | Material Flammability Rating | Contact Finish - Mating | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Color | Contact Material | Features | Orientation | Connector Type | Voltage Rating | Shielding | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 16 | Aluminum Alloy Nickel | Phenol Formaldehyde (PF) | Aluminum Alloy | Metal | 7 | 11.51 mm | 0.453 in | UL94 V-0 | Silver | Nickel | 85 °C | -25 °C | Threaded | Silver | Copper Alloy | Backshell Cable Clamp Coupling Nut | Keyed | Plug Male Pins | 250 VAC 350 VDC | Unshielded | 10 A | 118.1 µin | 3 µm |
