DF62W Series

Headers & Wire Housings

Manufacturer: Hirose Electric Co Ltd

Catalog

Headers & Wire Housings

Catalog

Headers & Wire Housings

Part	Pin or Socket	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	For Use With/Related Products [Min]	For Use With/Related Products	For Use With/Related Products [Max]	Tool Type	Note	Row Spacing	Row Spacing	Features	Contact Type	Number of Positions	Fastening Type	Color	Mounting Type	Insulation Material	Number of Rows [custom]	Pitch	Pitch	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Accessory Type	Voltage Rating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Material	Insulation Color	Material Flammability Rating	Termination	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Ingress Protection	Shrouding	Style	Number of Rows

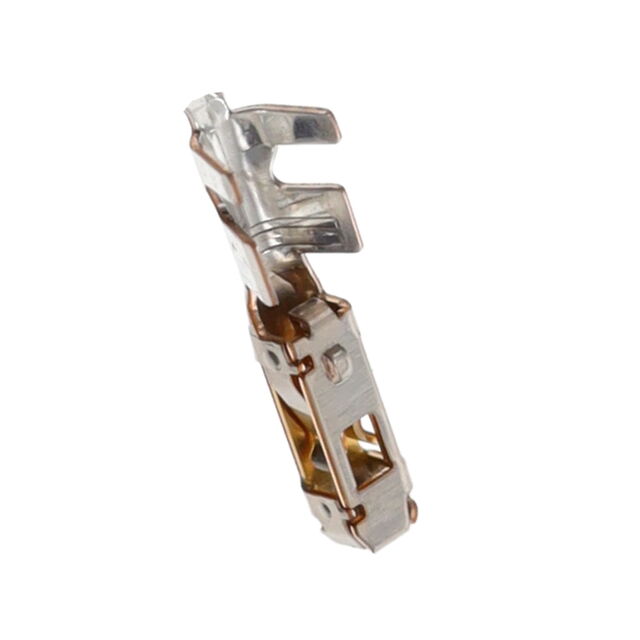

Hirose Electric Co Ltd DF62W-2022SCFA	Socket	Gold	0.203 çm	8 µin	22 AWG	19.5 AWG	Crimp
Hirose Electric Co Ltd DF62W/RE-MD								22 AWG	Rectangular Contacts	26 AWG	Extraction Tool
Hirose Electric Co Ltd DF62W-6EP-2.2C							Crimp					Contacts Not Included	2 mm	0.079 in	Water Resistant	Male Pin	6	Latch Holder	Black	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	2	2.2 mm	0.087 in	Plug	-35 °C	105 ░C

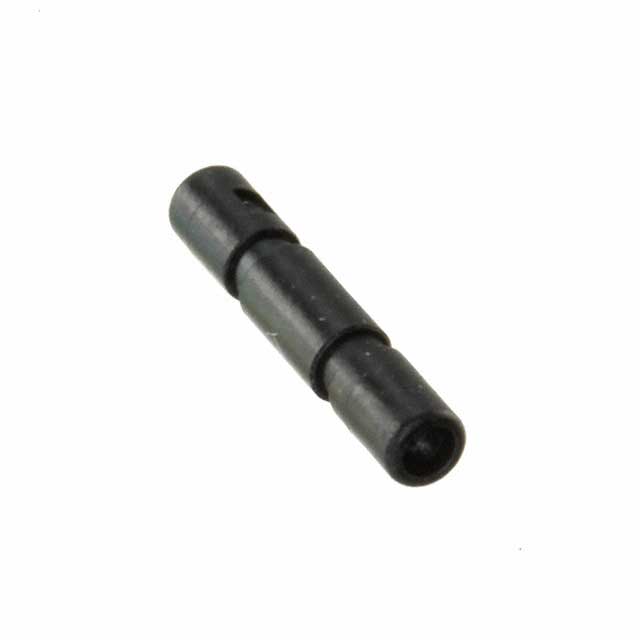

Hirose Electric Co Ltd DF62W-WP									DF62W Series																			Key Plug Polarizing Device Post
Hirose Electric Co Ltd DF62W-9P-2.2DSA(01)															Board Guide	Male Pin	9	Latch Holder		Through Hole	Polybutylene Terephthalate (PBT)	3			Header	-35 °C	105 ░C		250 V	Varies by Wire Gauge	0.112 in	2.84 mm	0.61 in	15.49 mm	Phosphor Bronze	Black	UL94 V-0	Solder	All	0.087 in	2.2 mm	Square	0.087 in	2.2 mm	Gold	IP67	Shrouded - 4 Wall	Board to Cable/Wire

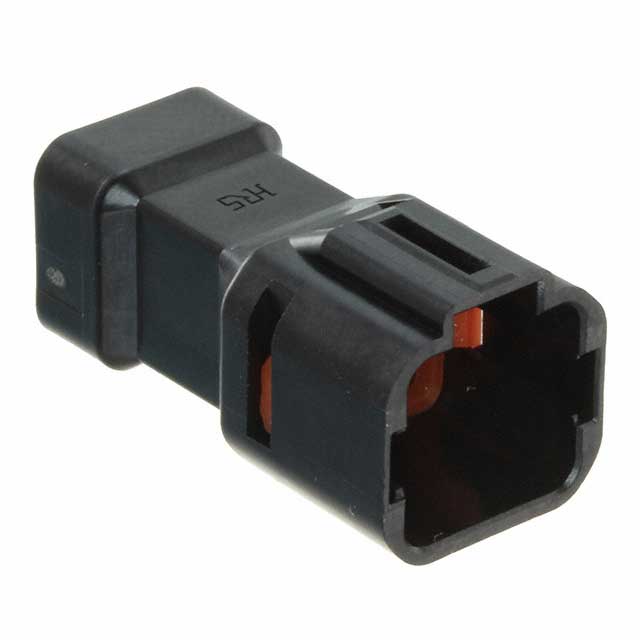

Hirose Electric Co Ltd DF62W-9EP-2.2C							Crimp					Contacts Not Included	2 mm	0.079 in	Water Resistant	Male Pin	9	Latch Holder	Black	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	3	2.2 mm	0.087 in	Plug	-35 °C	105 ░C
Hirose Electric Co Ltd DF62W-2S-2.2C(11)							Crimp					Contacts Not Included			Water Resistant	Female Socket	2	Latch Lock	Black	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)		2.2 mm	0.087 in	Socket	-35 °C	105 ░C																						1
Hirose Electric Co Ltd DF62W-2022SCF	Socket	Tin	1 Ám	39.4 Áin	22 AWG	19.5 AWG	Crimp

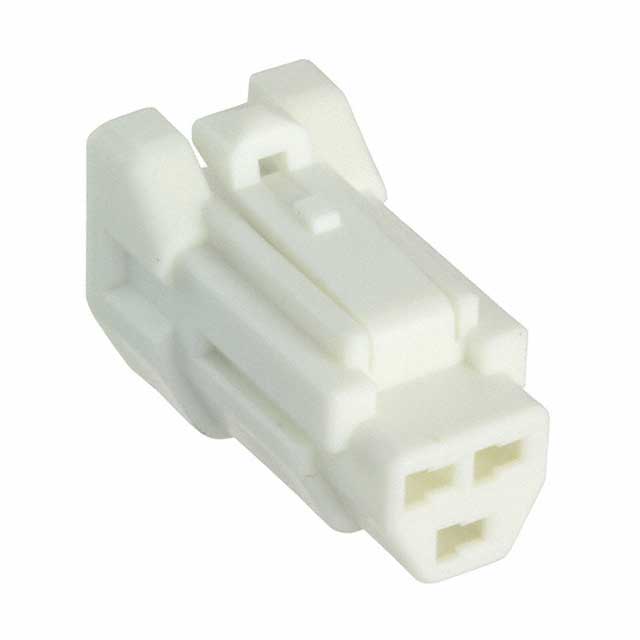

Hirose Electric Co Ltd DF62W-3S-2.2C							Crimp					Contacts Not Included	2 mm	0.079 in	Water Resistant	Female Socket		Latch Lock	White	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	2	2.2 mm	0.087 in	Socket	-35 °C	105 ░C
Hirose Electric Co Ltd DF62W-2S-2.2C							Crimp					Contacts Not Included			Water Resistant	Female Socket	2	Latch Lock	White	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)		2.2 mm	0.087 in	Socket	-35 °C	105 ░C																						1
