1437532 Series

Catalog

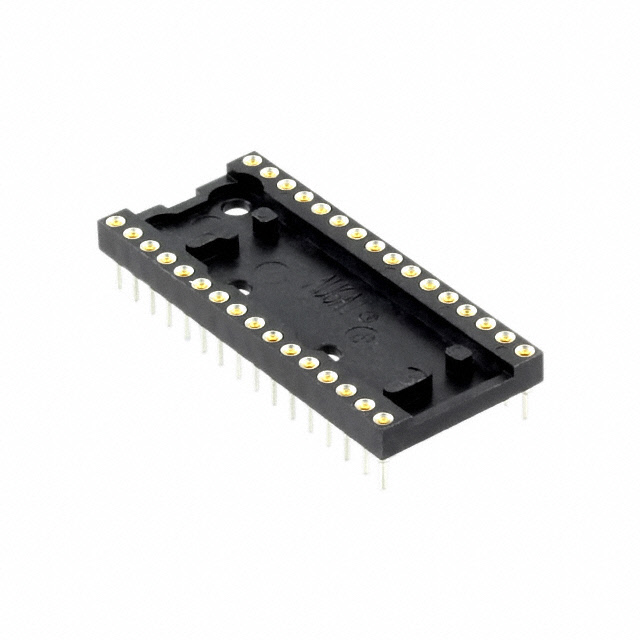

CONN IC DIP SOCKET 28POS GOLD

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Contact Resistance	Termination	Housing Material	Contact Finish - Mating	Mounting Type	Contact Material - Mating	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Type [custom]	Type [custom]	Type	Contact Finish - Post	Contact Material - Post [custom]	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post
TE Connectivity AMP Connectors 5-1437532-0	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Solder	Polyester	Gold	Through Hole	Copper Alloy	28	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold	Copper Alloy	0.1 in	2.54 mm	0.1 "	2.54 mm	Closed Frame
TE Connectivity AMP Connectors 7-1437532-1	0.125 in	3.18 mm	UL94 V-0		Solder	Polyester	Gold	Through Hole	Copper Alloy	36	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold	Copper Alloy	0.1 in	2.54 mm	0.1 "	2.54 mm	Closed Frame	0.63 µm	25 µin
TE Connectivity AMP Connectors 6-1437532-1	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Solder	Polyester	Gold	Through Hole	Beryllium Copper	32	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold		0.1 in	2.54 mm	0.1 "	2.54 mm	Closed Frame	0.63 µm	25 µin	Beryllium Copper
