RDBD Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

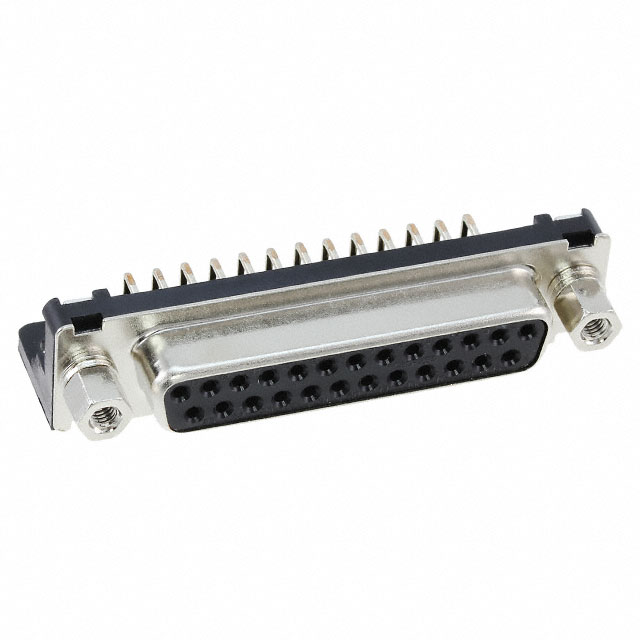

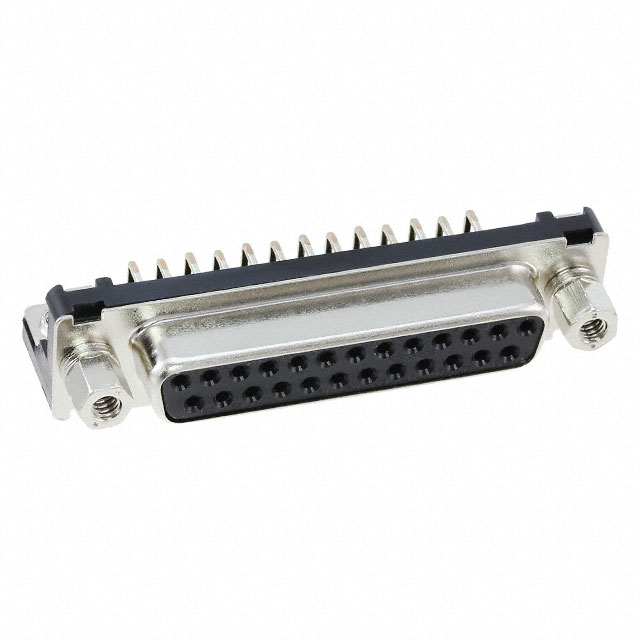

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Color | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Type | Material Flammability Rating | Shell Material, Finish | Flange Feature [custom] | Contact Finish | Current Rating (Amps) | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Mounting Type | Termination | Connector Style | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | -55 C | 85 °C | Phosphor Bronze | 350 VDC | Black | 2 | 0.203 çm | 8 µin | Signal | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | 2.6 mm | Gold | 3 A | 25 | B DB | 3 | Panel Mount Right Angle Through Hole | Solder | D-Sub | |
 Hirose Electric Co Ltd | |||||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||||
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | -55 C | 85 °C | Phosphor Bronze | 350 VDC | Black | 2 | 0.203 çm | 8 µin | Signal | Receptacle Female Sockets | UL94 V-0 | Nickel Plated Steel | Gold | 3 A | 25 | B DB | 3 | Panel Mount Right Angle Through Hole | Solder | D-Sub | 4-40 Mating Side Female Screwlock |
