C1304 Series

Catalog

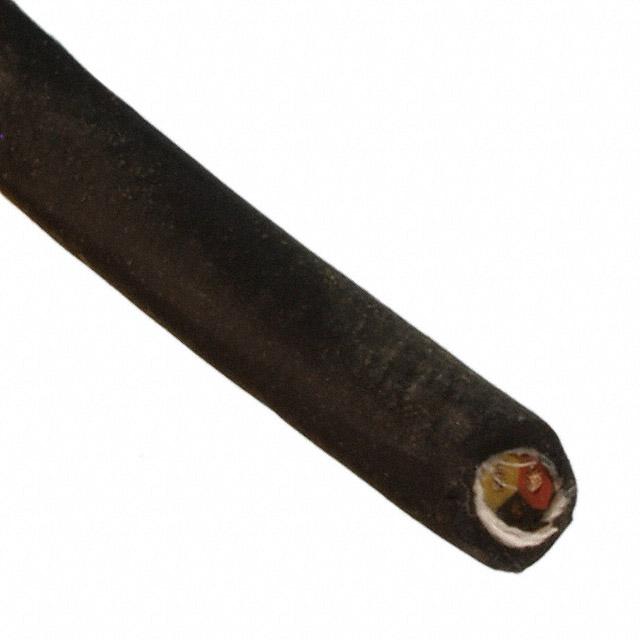

CABLE 3COND 20AWG BLK SHLD 500'

Part	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Usage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Length	Length	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Wire Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Shield Coverage	Length [x]	Length [x]
Prysmian Group C1304.18.01	Copper Tinned	Copper Tinned	7.24 mm	0.285 "	Black	Communication Control	Multi-Conductor	-20 ░C	60 °C	3	152.4 m	500 ft	Braid	26	34 AWG	300 VDC	20 AWG	Rubber	0.035 in	0.889 mm	Rubber
Prysmian Group C1304.41.01	Copper Tinned	Copper Tinned	7.24 mm	0.285 "	Black	Communication Control	Multi-Conductor	-20 ░C	60 °C	3	304.8 m	1000 ft	Braid	26	34 AWG	300 VDC	20 AWG	Rubber	0.035 in	0.889 mm	Rubber	80 %	100 ft	30.5 m
Prysmian Group C1304.38.01	Copper Tinned	Copper Annealed Tinned	7.24 mm	0.285 "	Black		Multi-Conductor	-20 ░C	60 °C	3	152.4 m	500 ft	Braid	26	34 AWG	300 VDC	20 AWG	Rubber	0.035 in	0.889 mm	Rubber	80 %
Prysmian Group C1304.41.01		Copper Tinned	7.24 mm	0.285 "	Black	Communication Control	Multi-Conductor	-20 ░C	60 °C	3	15.24 m 304.8 m	50 ft 1000 ft	Braid	26	34 AWG	300 VDC	20 AWG	Rubber	0.035 in	0.889 mm	Rubber		100 ft	30.5 m
