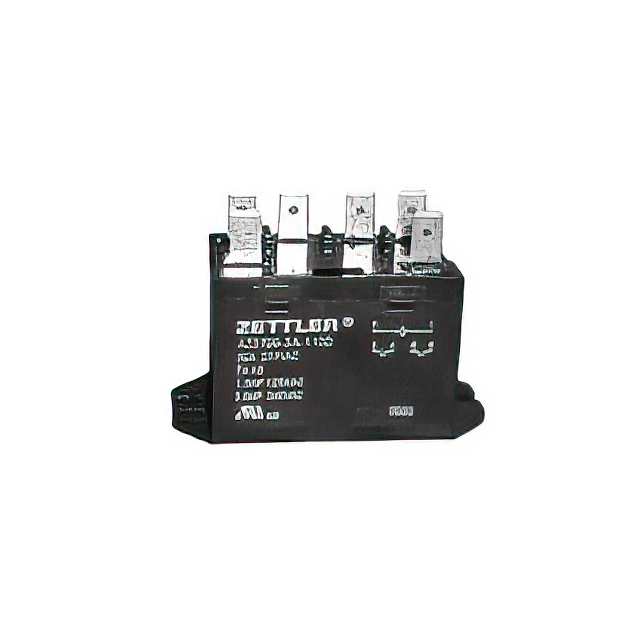

AZ2700-1A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 110V
| Part | Coil Resistance | Switching Voltage [Max] | Approval Agency | Must Release Voltage | Coil Type | Release Time | Must Operate Voltage | Contact Form | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Contact Rating (Current) | Operate Time | Load - Max Switching | Coil Insulation | Termination Style | Mounting Type | Relay Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 6.3 kOhms | 150 VDC 400 VAC | CUR TUV UL | 5.5 VDC | Non Latching | 30 ms | 82.5 VDC | SPST-NO (1 Form A) | Silver Cadmium Oxide (AgCdO) | 85 °C | -40 C | 17.5 mA | 30 A | 30 ms | 840 W 8310 VA | Class B | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 110 VDC |
American Zettler | 1.2 kOhms | 150 VDC 400 VAC | CUR TUV UL | 2.4 VDC | Non Latching | 30 ms | 36 VDC | SPST-NO (1 Form A) | Silver Cadmium Oxide (AgCdO) | 85 °C | -40 C | 40 mA | 30 A | 30 ms | 840 W 8310 VA | Class B | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 48 VDC |
American Zettler | 75 Ohms | 150 VDC 400 VAC | CUR TUV UL | 0.6 VDC | Non Latching | 30 ms | 9 VDC | SPST-NO (1 Form A) | Silver Cadmium Oxide (AgCdO) | 85 °C | -40 C | 160 mA | 30 A | 30 ms | 840 W 8310 VA | Class B | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 12 VDC |
American Zettler | 5217 Ohms | 150 VDC 400 VAC | CUR TUV UL | 18 VAC | Non Latching | 30 ms | 96 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | 105 ░C | -40 C | 23 mA | 30 A | 30 ms | 840 W 8310 VA | Class F | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 120 VAC |
 American Zettler | 6.3 kOhms | 150 VDC 400 VAC | CUR TUV UL | 5.5 VDC | Non Latching | 30 ms | 82.5 VDC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | 105 ░C | -40 C | 17.5 mA | 30 A | 30 ms | 840 W 8310 VA | Class F | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 110 VDC |
American Zettler | 5217 Ohms | 150 VDC 400 VAC | CUR TUV UL | 18 VAC | Non Latching | 30 ms | 96 VAC | SPST-NO (1 Form A) | Silver Cadmium Oxide (AgCdO) | 85 °C | -40 C | 23 mA | 30 A | 30 ms | 840 W 8310 VA | Class B | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 120 VAC |
American Zettler | 5217 Ohms | 150 VDC 400 VAC | CUR TUV UL | 18 VAC | Non Latching | 30 ms | 96 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | 105 ░C | -40 C | 23 mA | 30 A | 30 ms | 840 W 8310 VA | Class F | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 120 VAC |
American Zettler | 5217 Ohms | 150 VDC 400 VAC | CUR TUV UL | 18 VAC | Non Latching | 30 ms | 96 VAC | SPST-NO (1 Form A) | Silver Cadmium Oxide (AgCdO) | 85 °C | -40 C | 23 mA | 30 A | 30 ms | 840 W 8310 VA | Class B | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 120 VAC |
American Zettler | 75 Ohms | 150 VDC 400 VAC | CUR TUV UL | 0.6 VDC | Non Latching | 30 ms | 9 VDC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | 105 ░C | -40 C | 160 mA | 30 A | 30 ms | 840 W 8310 VA | Class F | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 12 VDC |
American Zettler | 18.809 Ohms | 150 VDC 400 VAC | CUR TUV UL | 0.9 VAC | Non Latching | 30 ms | 4.8 VAC/DC | SPST-NO (1 Form A) | Silver Cadmium Oxide (AgCdO) | 85 °C | -40 C | 319 mA | 30 A | 30 ms | 840 W 8310 VA | Class B | Quick Connect - 0.250" (6.3mm) | Chassis Mount | General Purpose | 6 VAC |
