AD5143 Series
Manufacturer: Analog Devices
Beta
⌘K
QUAD CHANNEL, 256-POSITION, I2C, NONVOLATILE DIGITAL POTENTIOMETER
| Part | Temperature Coefficient (Typ) | Package / Case | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Memory Type | Number of Taps | Resistance - Wiper (Ohms) (Typ) | Tolerance | Configuration | Mounting Type | Resistance (Ohms) | Supplier Device Package | Interface | Features | Taper | Voltage - Supply [Max] | Voltage - Supply [Min] | Embedded | Primary Attributes [custom] | Primary Attributes [custom] | Secondary Attributes | Utilized IC / Part | Supplied Contents | Contents | Type | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 35 ppm/°C | 16-WFQFN Exposed Pad CSP | 4 | 125 °C | -40 °C | Non-Volatile | 256 | 130 Ohms | 8 % | Potentiometer | Surface Mount | 100 kOhms | 16-LFCSP (3x3) | I2C | Selectable Address | Linear | 2.75 V 5.5 V | -2.25 V 2.3 V | |||||||||

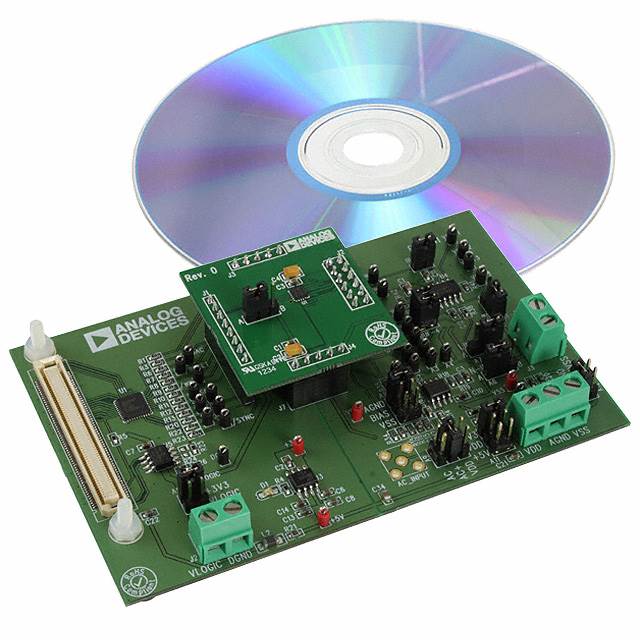

 Analog Devices | 4 | 256 | I2C Interface(s) | AD5143 | Board(s) | Board(s) | Data Acquisition | Digital Potentiometer |
