DF3-13S Series

Catalog

CONN RCPT 13POS 0.079 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Connector Type	Number of Positions Loaded	Contact Type	Number of Positions	Insulation Color	Style	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Mounting Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Termination	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Note	Pitch [x]	Pitch [x]	Color	Contact Termination

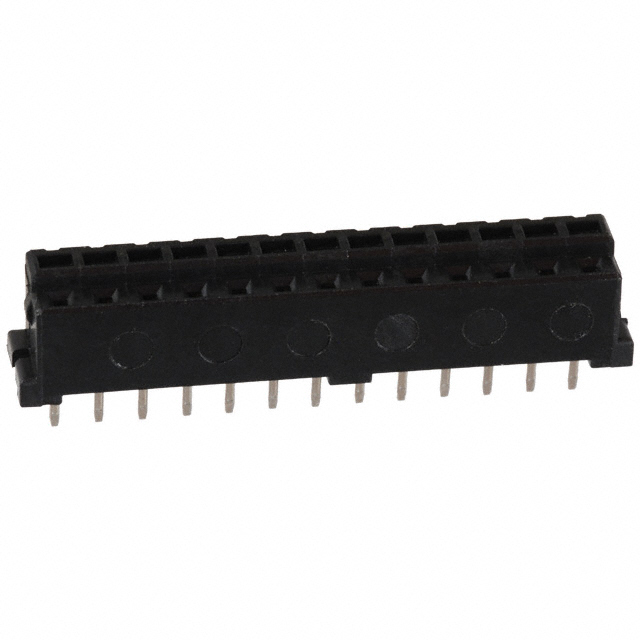

Hirose Electric Co Ltd DF3-13S-2DSA(50)	Square	Nylon Polyamide (PA)	Phosphor Bronze	6.6 mm	7.5 mm	Receptacle	All	Female Socket	13	Black	Board to Board Cable	Gold	UL94 V-0	85 °C	-30 ░C	1	Through Hole	30 VAC	0.118 in	3 mm	Friction Lock	5.9 mm	0.232 in	0.079 "	2 mm	3 A	Tin	Solder
Hirose Electric Co Ltd DF3-13S-2DSA(25)	Square	Nylon Polyamide (PA)	Phosphor Bronze	6.6 mm	7.5 mm	Receptacle	All	Female Socket	13	Black	Board to Board Cable		UL94 V-0	85 °C	-30 ░C	1	Through Hole	30 VAC	0.118 in	3 mm	Friction Lock	5.9 mm	0.232 in	0.079 "	2 mm	3 A	Tin	Solder	78.7 µin	2 µm	78.7 µin	2 µm

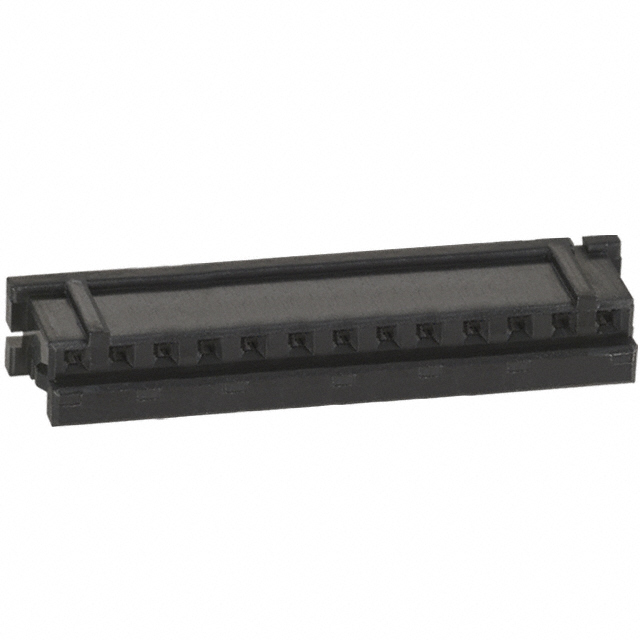

Hirose Electric Co Ltd DF3-13S-2C		Nylon Polyamide (PA)				Receptacle		Female Socket	13					105 ░C	-55 C	1	Free Hanging (In-Line)																Contacts Not Included	0.079 in	2 mm	Black	Crimp
