SA586 Series

Catalog

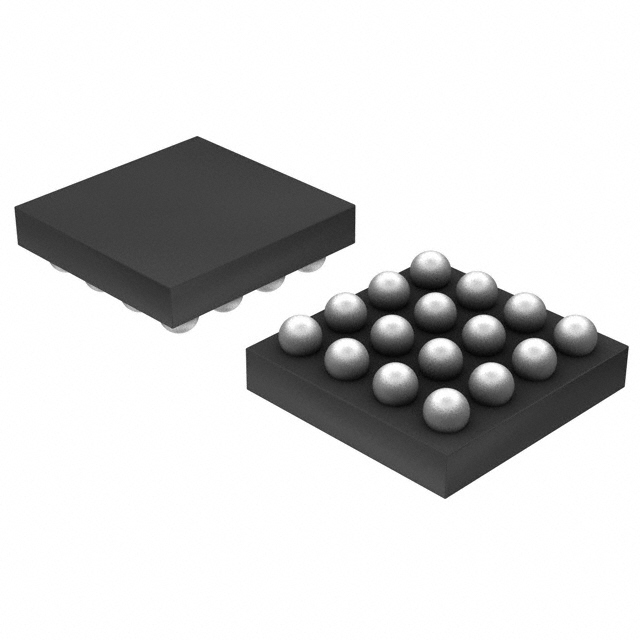

IC AMP CLASS G STER 25MW 16WLCSP

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Type	Features	Channels	Load Impedance	Maximum Output Power (per Channel)	Package / Case	Package Name	Package Length	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Mounting Type	Frequency	Current - Supply	RF Type	Number of Mixers	Gain	Secondary Attributes	Noise Figure	Test Frequency	Impedance	Topology	P1dB Additional	P1dB	Circuit	IIP3	Insertion Loss	Frequency Range (Max)	Frequency Range (Min)	Isolation	RF Family/Standard	Sensitivity	Power - Output	Current - Receiving
NXP USA Inc. SA58635UK,027	5.5 V	2.3 V	Class G	Depop I2C Short-Circuit and Thermal Protection Shutdown Volume Control	2	32 Ohm	25 mW	16-UFBGA WLCSP	16-WLCSP	1.7 mm	1.7 mm	85 °C	-40 °C	2-Channel (Stereo)	Surface Mount
NXP USA Inc. SA58631TK,157	18 V	2.2 V	Class AB	Depop Mute Short-Circuit and Thermal Protection Standby	1	8 Ohm	3 W	8-VDFN Exposed Pad	8-HVSON	4 mm	4 mm	85 °C	-40 °C	1-Channel (Mono)	Surface Mount
NXP USA Inc. SA58640DK,112	6 V	4.5 V							20-LSSOP 20-SSOP	0.173 in	4.4 mm				Surface Mount	100 MHz	6 mA	Cordless Phones	2	17 dB	Up Converter	7 dB
NXP USA Inc. SA58671UK,027	5.5 V	2.5 V	Class D	Differential Inputs Short-Circuit and Thermal Protection Shutdown	2	8 Ohm	1.3 W	16-UFBGA WLCSP	16-WLCSP	2.06 mm	2.11 mm	85 °C	-40 °C	2-Channel (Stereo)	Surface Mount
NXP USA Inc. SA58643DP,118	5.5 V	3 V		Single Line Control					8-TSSOP 8-TSSOP 8-MSOP	0.118 in	3 mm	85 °C	-40 °C		Surface Mount			802.11a b g WiFi WLAN					900 MHz	50 Ohm	Absorptive	OP1dB	18 dBm	SPDT	33 dBm	2 dB	1 GHz	0 Hz	30 dB
NXP USA Inc. SA58646BD,118	5.5 V	2.9 V	TxRx Only					64-LQFP	64-LQFP	10 mm	10 mm	85 °C	-40 °C		Surface Mount	900 MHz																		General ISM < 1GHz	-115 dBm	3 dBm	58 mA
NXP USA Inc. SA58631TK,118	18 V	2.2 V	Class AB	Depop Mute Short-Circuit and Thermal Protection Standby	1	8 Ohm	3 W	8-VDFN Exposed Pad	8-HVSON	4 mm	4 mm	85 °C	-40 °C	1-Channel (Mono)	Surface Mount
NXP USA Inc. SA58670BS,115	5.5 V	2.5 V	Class D	Differential Inputs Short-Circuit and Thermal Protection Shutdown	2	4 Ohm	2.1 W	20-VFQFN Exposed Pad	20-HVQFN	4 mm	4 mm	85 °C	-40 °C	2-Channel (Stereo)	Surface Mount
NXP USA Inc. SA58632BS,118	18 V	2.2 V	Class AB	Depop Mute Short-Circuit and Thermal Protection Standby	2	8 Ohm	2.2 W	20-VQFN Exposed Pad	20-HVQFN	5 mm	6 mm	85 °C	-40 °C	2-Channel (Stereo)	Surface Mount
NXP USA Inc. SA58670ABS,115	5.5 V	2.5 V	Class D	Differential Inputs Short-Circuit and Thermal Protection Shutdown	2	4 Ohm	2.1 W	20-VFQFN Exposed Pad	20-HVQFN	4 mm	4 mm	85 °C	-40 °C	2-Channel (Stereo)	Surface Mount
