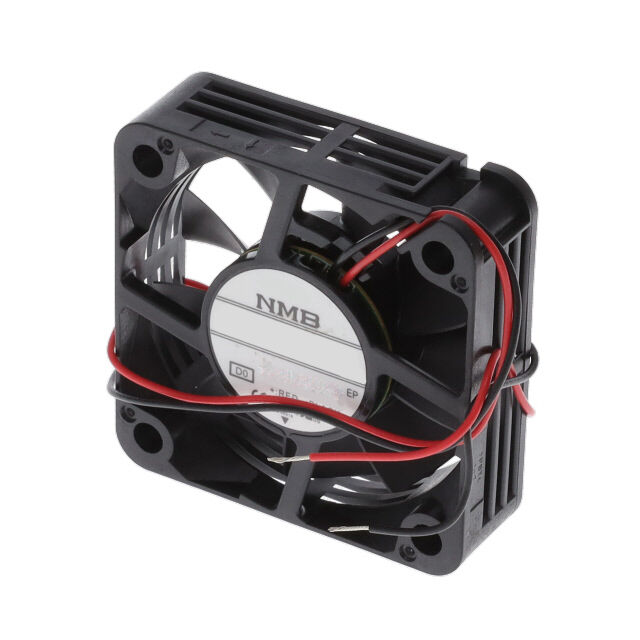

05015SS Series

Catalog

FAN AXIAL 50X15.35MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Lifetime @ Temp.	RPM	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Width [y]	Voltage - Rated	Features	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Termination	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Weight [diameter]	Weight [diameter]
NMB TECHNOLOGIES 05015SS-12M-WA-00	Plastic	0.09 A	13.8 VDC	6 VDC	Plastic	40000 Hrs	4550 RPM	Tubeaxial	70 °C	-10 °C	1.08 W	15.35 mm	12 VDC	Auto Restart	50 mm	50 mm	Sleeve	2 Wire Leads	25 dB(A)	0.1 in H2O	24.9 Pa	0.277 m³/min	9.9 CFM
NMB TECHNOLOGIES 05015SS-12N-WL-00	Plastic	100 mA	13.8 VDC	6 VDC	Plastic	40000 Hrs	5050 RPM	Tubeaxial	70 °C	-10 °C	1.2 W	15.35 mm	12 VDC	Auto Restart Locked Rotor Sensor	50 mm	50 mm	Sleeve	3 Wire Leads	27.5 dB(A)	0.12 in H2O	29.9 Pa	0.305 mł/min	10.9 CFM
NMB TECHNOLOGIES 05015SS-12M-WT-00	Plastic	0.09 A	13.8 VDC	6 VDC	Plastic	40000 Hrs	4550 RPM	Tubeaxial	70 °C	-10 °C	1.08 W	15.35 mm	12 VDC	Auto Restart Speed Sensor (Tach)	50 mm	50 mm	Sleeve	3 Wire Leads	25 dB(A)	0.1 in H2O	24.9 Pa	0.277 m³/min	9.9 CFM
NMB TECHNOLOGIES 05015SS-12N-WA-00	Plastic	100 mA	13.8 VDC	6 VDC	Plastic	40000 Hrs	5050 RPM	Tubeaxial	70 °C	-10 °C	1.2 W	15.35 mm	12 VDC	Auto Restart	50 mm	50 mm	Sleeve	2 Wire Leads	27.5 dB(A)	0.12 in H2O	29.9 Pa	0.305 mł/min	10.9 CFM
NMB TECHNOLOGIES 05015SS-12N-WT-00	Plastic	100 mA	13.8 VDC	6 VDC	Plastic	40000 Hrs	5050 RPM	Tubeaxial	70 °C	-10 °C	1.2 W	15.35 mm	12 VDC	Auto Restart Speed Sensor (Tach)	50 mm	50 mm	Sleeve	3 Wire Leads	27.5 dB(A)	0.12 in H2O	29.9 Pa	0.305 mł/min	10.9 CFM

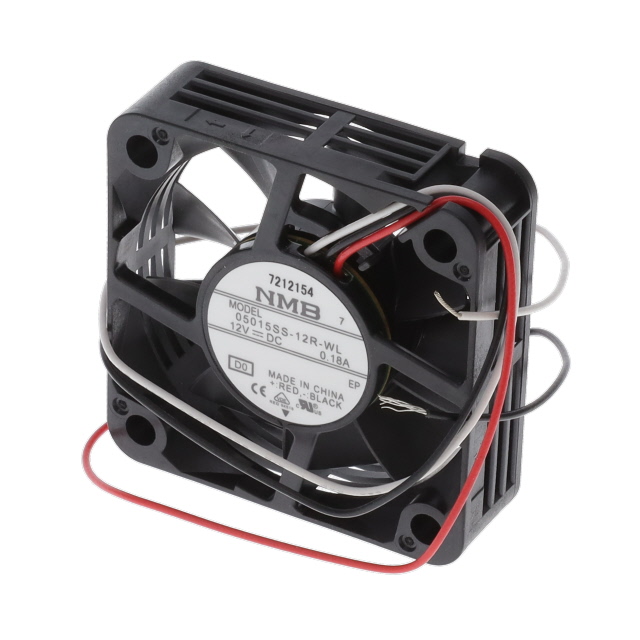

NMB TECHNOLOGIES 05015SS-12R-WL-D0	Plastic	140 mA	13.8 VDC	6 VDC	Plastic	40000 Hrs	6550 RPM	Tubeaxial	70 °C	-10 °C	1.68 W	15.35 mm	12 VDC	Auto Restart Locked Rotor Sensor	50 mm	50 mm	Sleeve	3 Wire Leads	35.5 dB	0.2 in H2O	49.8 Pa	0.414 mł/min	14.8 CFM
NMB TECHNOLOGIES 05015SS-12R-WT-00	Plastic	140 mA	13.8 VDC	6 VDC	Plastic		6550 RPM	Tubeaxial	70 °C	-10 °C	1.68 W	15.35 mm	12 VDC	Speed Sensor (Tach)	50 mm	50 mm	Sleeve	3 Wire Leads	35.5 dB	0.2 in H2O	49.8 Pa	0.414 mł/min	14.8 CFM	0.055 lb	24.95 g

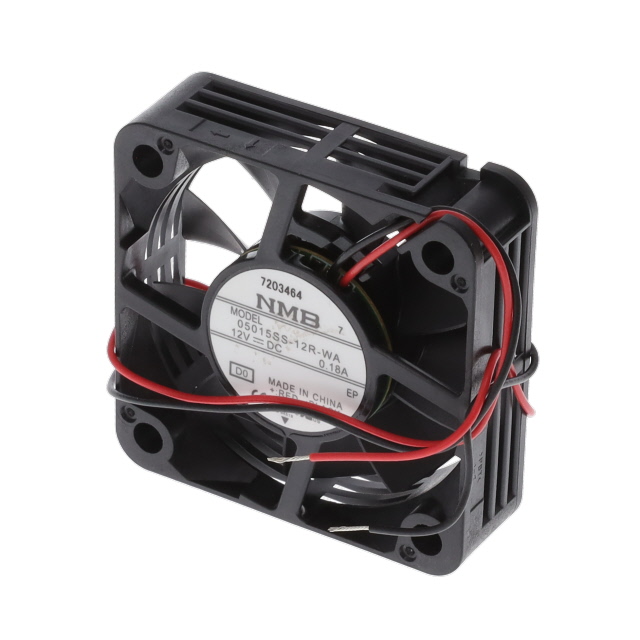

NMB TECHNOLOGIES 05015SS-12R-WA-D0	Plastic	140 mA	13.8 VDC	6 VDC	Plastic	40000 Hrs	6550 RPM	Tubeaxial	70 °C	-10 °C	1.68 W	15.35 mm	12 VDC	Auto Restart	50 mm	50 mm	Sleeve	2 Wire Leads	35.5 dB	0.2 in H2O	49.8 Pa	0.414 mł/min	14.8 CFM
NMB TECHNOLOGIES 05015SS-12M-WL-00	Plastic	0.09 A	13.8 VDC	6 VDC	Plastic	40000 Hrs	4550 RPM	Tubeaxial	70 °C	-10 °C	1.08 W	15.35 mm	12 VDC	Auto Restart Locked Rotor Sensor	50 mm	50 mm	Sleeve	3 Wire Leads	25 dB(A)	0.1 in H2O	24.9 Pa	0.277 m³/min	9.9 CFM
NMB TECHNOLOGIES 05015SS-12N-WL-D0							5050 RPM	Tubeaxial	70 °C	-10 °C	840 mW	15 mm	12 VDC	Auto Restart Locked Rotor Sensor	50 mm	50 mm	Sleeve	3 Wire Leads	27.5 dB(A)	0.12 in H2O	29.9 Pa	0.305 mł/min	10.9 CFM
