AZEV200 Series
Manufacturer: American Zettler
Beta
⌘K

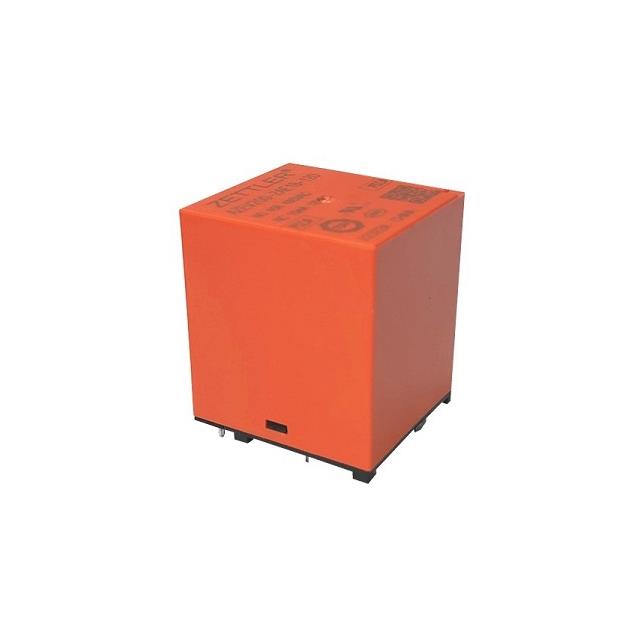

RELAY EV CHARGING 3PST 40A 12V
| Part | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching [Max] | Contact Material | Coil Current | Coil Voltage | Contact Form | Release Time | Coil Type | Approval Agency | Must Release Voltage | Coil Insulation | Switching Voltage [Max] | Mounting Type | Relay Type | Contact Rating (Current) | Termination Style | Operate Time | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 55.4 Ohms | -40 C | 95 °C | 19200 VA | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | 216 mA | 12 VDC | 3PST-2NO/1NC (2 Form A 1 Form B) | 10 ms | Non Latching | CQC cURus TUV | 0.6 VDC | Class F | 480 VAC | Through Hole | EV Charging | 40 A | PC Pin | 30 ms | 9 VDC |
American Zettler | 221.5 Ohms | -40 C | 95 °C | 19200 VA | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | 108 mA | 24 VDC | 3PST-2NO/1NC (2 Form A 1 Form B) | 10 ms | Non Latching | CQC cURus TUV | 1.2 VDC | Class F | 480 VAC | Through Hole | EV Charging | 40 A | PC Pin | 30 ms | 18 VDC |
American Zettler | 13.9 Ohms | -40 C | 95 °C | 19200 VA | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | 432 mA | 3PST-2NO/1NC (2 Form A 1 Form B) | 10 ms | Non Latching | CQC cURus TUV | 0.3 VDC | Class F | 480 VAC | Through Hole | EV Charging | 40 A | PC Pin | 30 ms | 4.5 VDC |
