NVE4153N Series

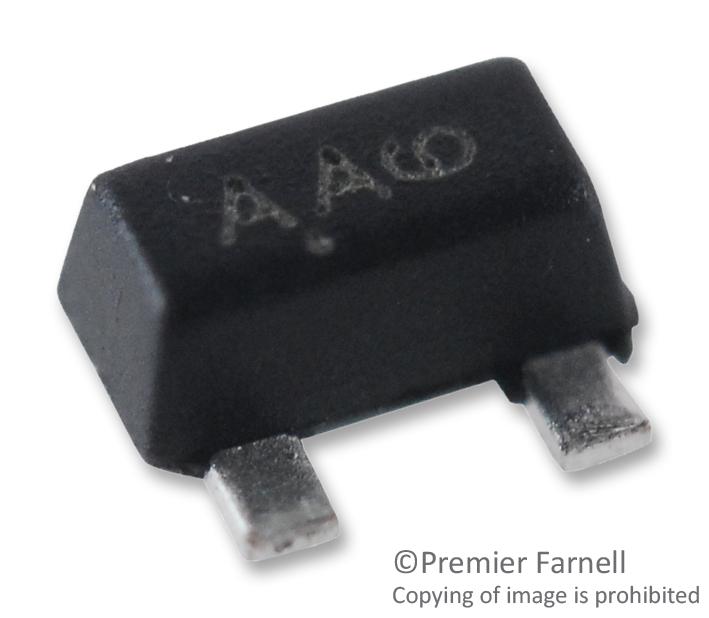

Single N−Channel Small Signal MOSFET with ESD Protection 20V, 915mA, 230mΩ

Catalog

Single N−Channel Small Signal MOSFET with ESD Protection 20V, 915mA, 230mΩ

Part	Power Dissipation (Max)	Technology	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Supplier Device Package	FET Type	Grade	Vgs (Max)	Qualification	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
ON Semiconductor NVE4153NT1G	300 mW	MOSFET (Metal Oxide)	Surface Mount	110 pF	915 mA	20 V	1.82 nC	1.1 V	230 mOhm	SC-89-3	N-Channel	Automotive	6 V	AEC-Q101	1.5 V 4.5 V	SC-89 SOT-490	-55 °C	150 °C

Catalog

Single N−Channel Small Signal MOSFET with ESD Protection 20V, 915mA, 230mΩ

Key Features

• Low RDS(on)Improving System Efficiency

• Low Threshold Voltage, 1.5V Rated

• ESD Protected Gate

• AEC−Q101 Qualified and PPAP Capable

Description

Automotive Power MOSFET ideal for low power applications. 20V 915mA 230mΩ Single N-Channel SC-89 with ESD Protection. AEC-Q101 Qualified MOSFET and PPAP capable suitable for automotive applications.
