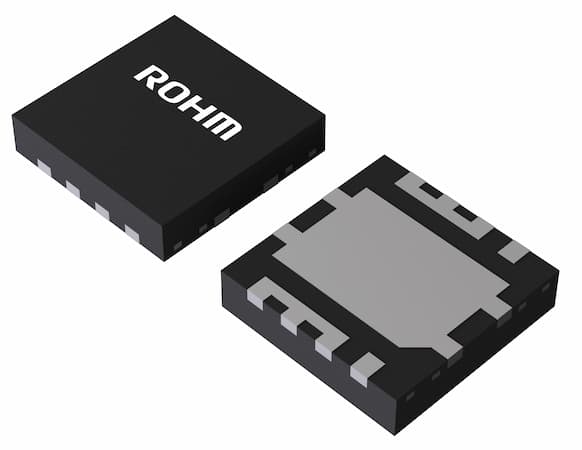

HS8MA2 Series

30V Dual Common Drain Pch+Nch Power MOSFET

Catalog

30V Dual Common Drain Pch+Nch Power MOSFET

Part	Supplier Device Package	Configuration	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Drain to Source Voltage (Vdss)	Technology	Rds On (Max) @ Id, Vgs	Operating Temperature	Power - Max [Max]	Package / Case	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id [Max]	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs
Rohm Semiconductor HS8MA2TCR1	DFN3333-9DC	N and P-Channel	320 pF 365 pF	Surface Mount	30 V	MOSFET (Metal Oxide)	35 mOhm 80 mOhm	150 °C	2 W	8-PowerWDFN	5 A 7 A	2.5 V	7.8 nC	8.4 nC

30V Dual Common Drain Pch+Nch Power MOSFET

• Low on - resistance, Small Surface Mount Package, Pb-free plating RoHS compliant, Halogen Free

Two MOSFETs of 30V Pch and Nch (common drain configuration) are built in a symmetric dual package. Ideal for switching and motor drive applications.
