76812 Series

Catalog

HOOK-UP STRND 14AWG BLUE

Part	Jacket (Insulation) Material	Length	Length	Jacket Color	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Length [x]
Prysmian Group 76812.44.07	Poly-Vinyl Chloride (PVC)	2500 ft	762 m	Blue	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare
Prysmian Group 76812.44.01	Poly-Vinyl Chloride (PVC)	2500 ft	762 m	Black	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare
Prysmian Group 76812.R8.06	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	Green	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare

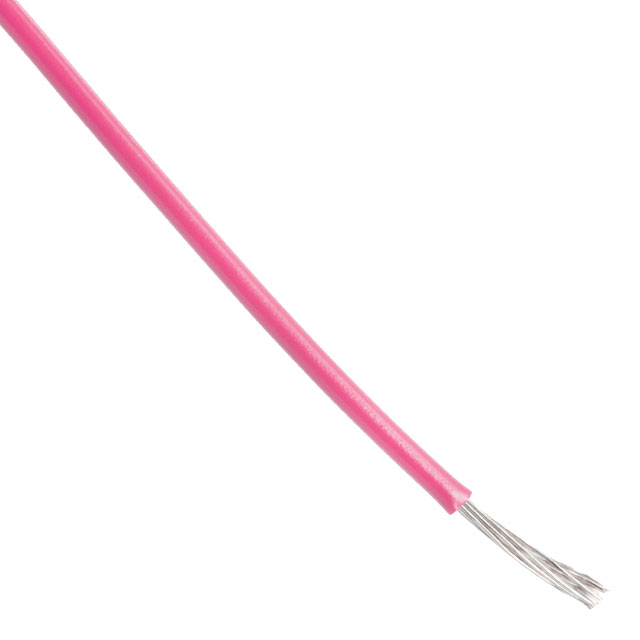

Prysmian Group 76812.R8.13	Poly-Vinyl Chloride (PVC)	500 ft	152.4 m	Pink	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare

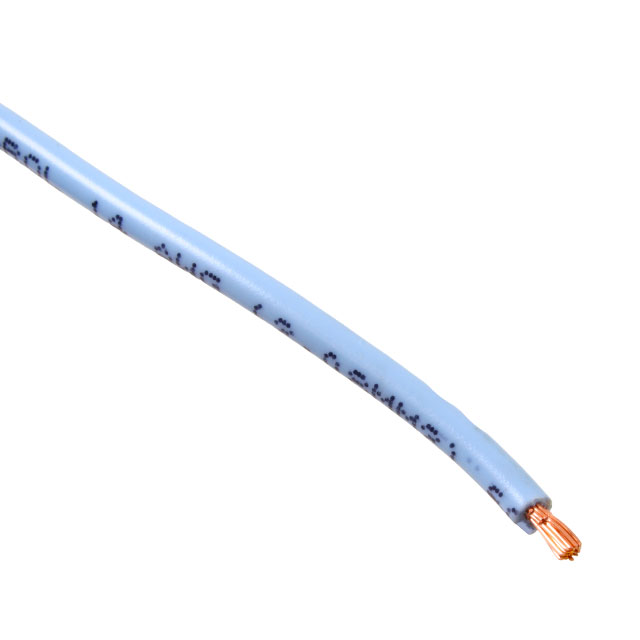

Prysmian Group 76812.R8.16	Poly-Vinyl Chloride (PVC)	50 ft 500 ft	15.24 m 152.4 m	Blue	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare	100 ft	30.5 m
Prysmian Group 76812.R8.03	Poly-Vinyl Chloride (PVC)	50 ft 500 ft	15.24 m 152.4 m	Red	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare	100 ft	30.5 m
Prysmian Group 76812.R8.02	Poly-Vinyl Chloride (PVC)	50 ft 500 ft	15.24 m 152.4 m	White	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare	100 ft	30.5 m
Prysmian Group 76812.R8.05	Poly-Vinyl Chloride (PVC)	50 ft 500 ft	15.24 m 152.4 m	Yellow	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare
Prysmian Group 76812.R8.10	Poly-Vinyl Chloride (PVC)	500 ft	152.4 m	Gray	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare
Prysmian Group 76812.R8.08	Poly-Vinyl Chloride (PVC)	500 ft	152.4 m	Brown	14.5 AWG	0.8 mm	0.031 in	3.45 mm	0.136 in	Hook-Up	19	0.0147 in	ASTM B-8 UL Style 1015/1335	600 V	-20 ░C	105 ░C	Copper Annealed Bare	100 ft	30.5 m
