630-M15 Series
Manufacturer: EDAC Inc.
Beta
⌘K
630M SERIES RIGHT ANGLE D-SUB
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Features | Number of Rows [custom] | Contact Finish | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Connector Style | Contact Type | Material Flammability Rating | Contact Finish Thickness | Mounting Type | Current Rating (Amps) | Flange Feature | Number of Positions | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

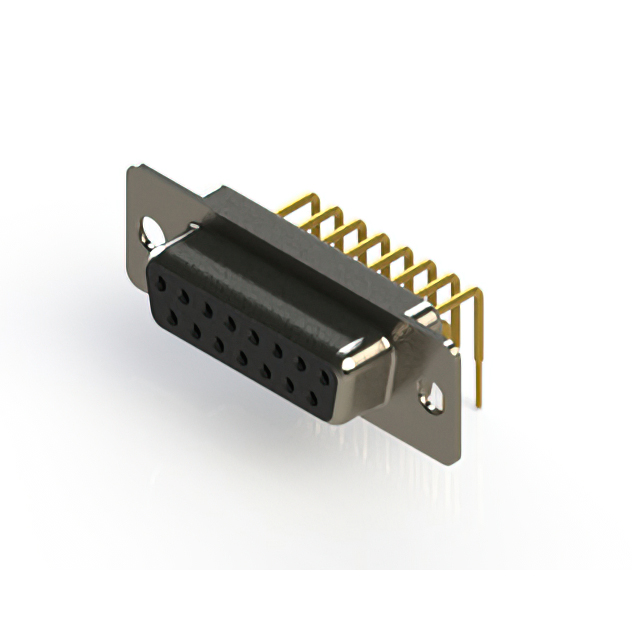

 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Nickel Plated Steel | Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Flash | Right Angle Through Hole | 5 A | Housing/Shell (Unthreaded) | 15 | Receptacle Female Sockets | Solder | |||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Flash | Right Angle Through Hole | 5 A | Housing/Shell (Unthreaded) | 15 | Receptacle Female Sockets | Solder | ||||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Green | -55 C | 125 °C | Nickel Plated Steel | Mounting Brackets Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Flash | Right Angle Through Hole | 5 A | 4-40 | 15 | Receptacle Female Sockets | Solder | |||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Flash | Right Angle Through Hole | 5 A | Housing/Shell (Unthreaded) | 15 | Receptacle Female Sockets | Solder | ||||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Green | -55 C | 125 °C | Nickel Plated Steel | Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Right Angle Through Hole | 5 A | Housing/Shell (Unthreaded) | 15 | Receptacle Female Sockets | Solder | 0.38 µm | 15 µin | ||

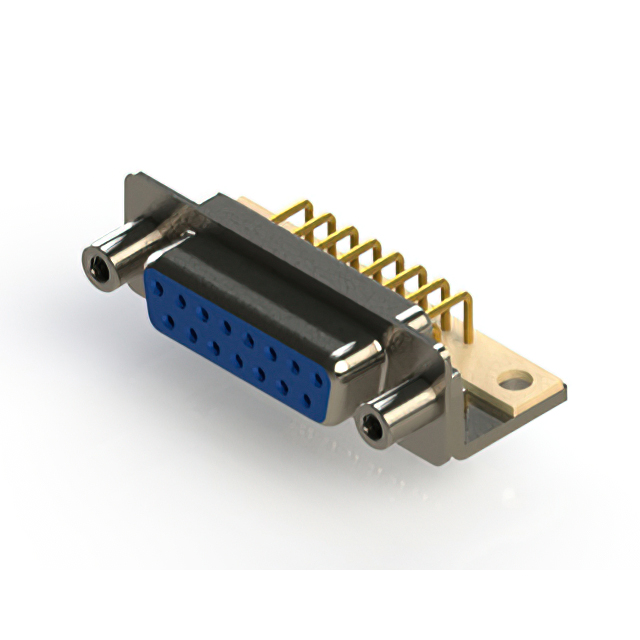

 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Blue | -55 C | 125 °C | Mounting Brackets Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Right Angle Through Hole | 5 A | Housing/Shell | 15 | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | 4-40 | ||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Right Angle Through Hole | 5 A | Housing/Shell (Unthreaded) | 15 | Receptacle Female Sockets | Solder | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Green | -55 C | 125 °C | Mounting Brackets Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Right Angle Through Hole | 5 A | 4-40 | 15 | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | |||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Green | -55 C | 125 °C | Nickel Plated Steel | Mounting Brackets Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Right Angle Through Hole | 5 A | 4-40 | 15 | Receptacle Female Sockets | Solder | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Blue | -55 C | 125 °C | Nickel Plated Steel | Mounting Brackets Shielded | 2 | Gold | 9.4 mm | 0.37 in | 2 | D-Sub | Signal | UL94 V-0 | Right Angle Through Hole | 5 A | 4-40 | 15 | Receptacle Female Sockets | Solder | 0.38 µm | 15 µin |
