MCP14A0304 Series

Dual 3 A MOSFET Gate Driver

Catalog

Dual 3 A MOSFET Gate Driver

Part	Logic Voltage - VIL, VIH	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Input Type	Driven Configuration	Mounting Type	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Supplier Device Package	Package / Case [custom]	Package / Case
Microchip Technology MCP14A0304-E/SN	0.8 V 2 V	8-SOIC	3.9 mm	0.154 in	18 V	4.5 V	12 ns	12 ns	Non-Inverting	High-Side Low-Side	Surface Mount	IGBT	125 °C	-40 °C	Independent	3 A	3 A	2	8-SOIC

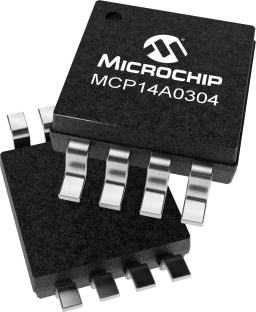

Microchip Technology MCP14A0304T-E/MS	0.8 V 2 V	8-MSOP 8-TSSOP			18 V	4.5 V	12 ns	12 ns	Non-Inverting	High-Side Low-Side	Surface Mount	IGBT	125 °C	-40 °C	Independent	3 A	3 A	2	8-MSOP	0.118 in	3 mm
Microchip Technology MCP14A0304T-E/SN	0.8 V 2 V	8-SOIC	3.9 mm	0.154 in	18 V	4.5 V	12 ns	12 ns	Non-Inverting	High-Side Low-Side	Surface Mount	IGBT	125 °C	-40 °C	Independent	3 A	3 A	2	8-SOIC

Catalog

Dual 3 A MOSFET Gate Driver

Key Features

- High Peak Output Current: 3.0 A (typical)

- Wide Input Supply Voltage Operating Range: 4.5 V to 18 V

- Low Shoot-Through/Cross-Conduction Current in Output Stage

- High Capacitive Load Drive Capability: 1800 pF in 12 ns (typical)

- Short Delay Times: 17 ns (tD1), 21 ns (tD2) (typical)

- Low Supply Current: 620 µA (typical)

- Low-Voltage Threshold Input and Enable with Hysteresis

- Latch-Up Protected: Withstands 0.5 A Reverse Current

- Space-Saving Packages: 8-Lead MSOP, 8-Lead SOIC, 8-Lead 2 x 3 TDFN

Description

The MCP14A0303/4/5 are dual output high-speed MOSFET gate drivers that are capable of providing up to 3 A of peak current while operating from a single 4.5 V to 18 V supply. There are three output configurations available: MCP14A0303: Inverting MCP14A0304: Non-inverting MCP14A0305): Complimentary (one Inverting and one Non-Inverting output The MCP14A0303/4/5 MOSFET gate drivers feature low shoot through current, fast rise and fall times, and short propagation delays which make them ideal for high switching frequency applications. The MCP14A0303/4/5 family of devices offer enhanced control with enable functionality. The active-high enable pin can be driven low to drive the outputs of the MCP14A0303/4/5 low, regardless of the status of the input pins. An integrated pull-up resistor allows the user to leave the enable pin floating for standard operation. These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 2 kV (HBM) and 200 V (MM).
