C3114 Series
Manufacturer: Prysmian Group
Beta
⌘K

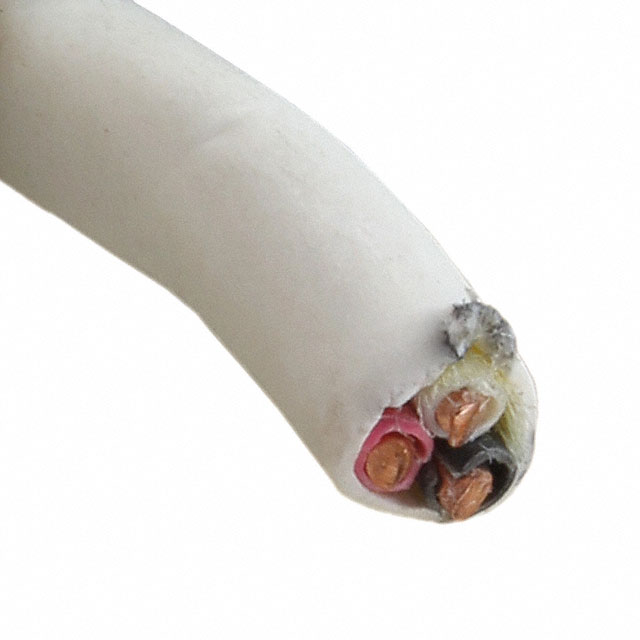

CABLE 3COND 18AWG WHITE 500'
| Part | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Number of Conductors | Jacket (Insulation) Material | Length [x] | Length [x] | Wire Gauge | Features | Conductor Strand | Ratings | Jacket Color | Voltage | Cable Type | Conductor Material | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 152.4 m 304.8 m | 500 ft 1000 ft | 75 ░C | 0 °C | Communication Control | 3.84 mm | 0.151 in | 0.381 mm | 0.015 in | 3 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 18 AWG | Rip Cord | Solid | ASTM B-3 | White | 150 V | Multi-Conductor | Copper Bare | Poly-Vinyl Chloride (PVC) |
 Prysmian Group | 304.8 m | 1000 ft | 75 ░C | 0 °C | Communication Control | 3.84 mm | 0.151 in | 0.381 mm | 0.015 in | 3 | Poly-Vinyl Chloride (PVC) | 18 AWG | Rip Cord | Solid | ASTM B-3 | Natural | 150 V | Multi-Conductor | Copper Bare | Poly-Vinyl Chloride (PVC) | ||
Prysmian Group | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 75 ░C | 0 °C | Communication Control | 3.84 mm | 0.151 in | 0.381 mm | 0.015 in | 3 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 18 AWG | Rip Cord | Solid | ASTM B-3 | White | 150 V | Multi-Conductor | Copper Bare | Poly-Vinyl Chloride (PVC) |
