BUK9K32 Series

Catalog

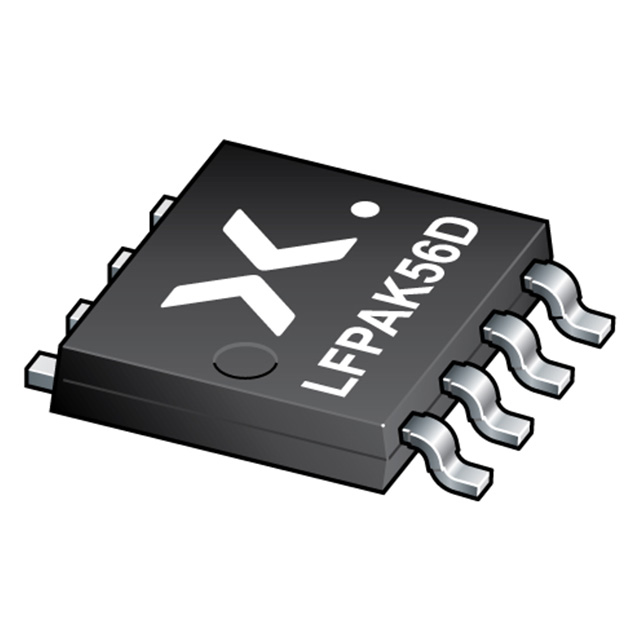

MOSFET 2N-CH 100V 26A LFPAK56D

Part	Current - Continuous Drain (Id) @ 25°C	Configuration	Rds On (Max) @ Id, Vgs	Package / Case	Technology	FET Feature	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Qualification	Grade	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Power - Max [Max]	Vgs(th) (Max) @ Id
Freescale Semiconductor - NXP BUK9K32-100EX	26 A	2 N-Channel (Dual)	31 mOhm	8-LFPAK56 SOT-1205	MOSFET (Metal Oxide)	Logic Level Gate	3168 pF	LFPAK56D	AEC-Q100	Automotive	100 V	-55 °C	175 ░C	27.3 nC	Surface Mount	64 W	2.1 V
