DF3-4 Series

Catalog

CONN RCPT 4POS IDC 26AWG GOLD

Part	Wire Type	Contact Type	Connector Type	Contact Finish	Color	Features	Number of Rows	Cable Termination	Pitch [x]	Pitch [x]	Number of Positions	Wire Gauge	Mounting Type	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Termination	Material Flammability Rating	Style	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Number of Positions Loaded	Fastening Type	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Voltage Rating	Insulation Height	Insulation Height	Contact Finish - Post	Note	Contact Termination	Contact Finish - Mating	Shrouding	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Convert To (Adapter End)	Convert From (Adapter End)	Overall Contact Length	Contact Length - Mating	Contact Length - Mating
Hirose Electric Co Ltd DF3-4S-2R26(01)	Discrete	Female Socket	Receptacle	Gold	Black	Closed End	1	IDC	0.079 in	2 mm	4	26 AWG	Free Hanging (In-Line)

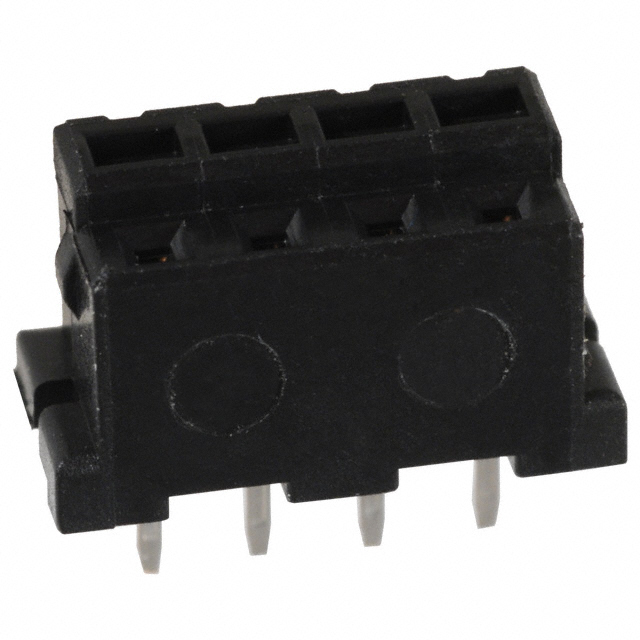

Hirose Electric Co Ltd DF3-4S-2DSA(25)		Female Socket	Receptacle				1				4		Through Hole	Phosphor Bronze	Nylon Polyamide (PA)	Square	78.7 µin	2 µm	78.7 µin	2 µm	0.118 in	3 mm	Solder	UL94 V-0	Board to Board Cable	3 A	0.079 "	2 mm	85 °C	-30 ░C	Black	All	Friction Lock	6.6 mm	7.5 mm	30 VAC	5.9 mm	0.232 in	Tin

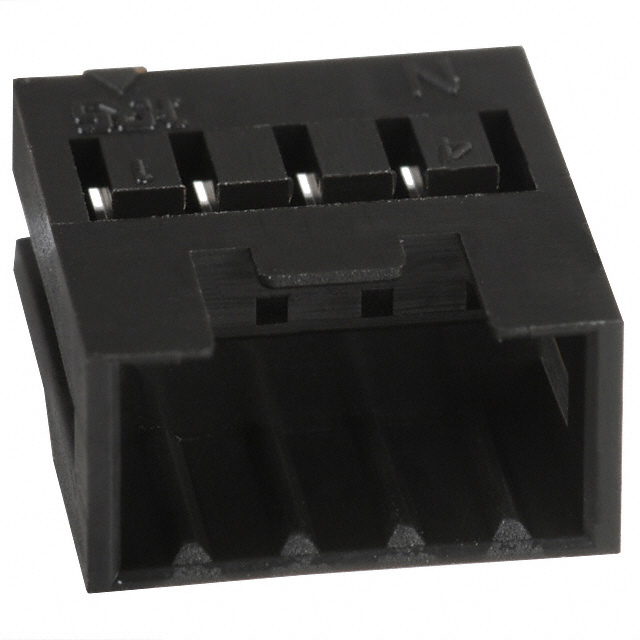

Hirose Electric Co Ltd DF3-4EP-2C		Male Pin	Plug		Black		1		0.079 in	2 mm	4		Free Hanging (In-Line)		Nylon Polyamide (PA)														105 ░C	-55 C										Contacts Not Included	Crimp
Hirose Electric Co Ltd DF3-4S-2R28(05)	Discrete	Female Socket	Receptacle	Tin	Black	Closed End	1	IDC	0.079 in	2 mm	4	28 AWG	Free Hanging (In-Line)
Hirose Electric Co Ltd DF3-4S-2DSA(50)		Female Socket	Receptacle				1				4		Through Hole	Phosphor Bronze	Nylon Polyamide (PA)	Square					0.118 in	3 mm	Solder	UL94 V-0	Board to Board Cable	3 A	0.079 "	2 mm	85 °C	-30 ░C	Black	All	Friction Lock	6.6 mm	7.5 mm	30 VAC	5.9 mm	0.232 in	Tin			Gold
Hirose Electric Co Ltd DF3-4P-2H(20)		Male Pin	Header			Board Guide	1				4		Right Angle Surface Mount	Brass	Nylon Polyamide (PA)	Circular							Solder	UL94 V-0	Board to Board Cable	3 A	0.079 "	2 mm	105 ░C	-55 C	Beige	All	Push-Pull				5.6 mm	0.22 in	Tin				Shrouded - 4 Wall
Hirose Electric Co Ltd DF3-4P-2V(20)		Male Pin	Header			Board Guide	1				4		Surface Mount	Brass	Nylon Polyamide (PA)	Circular							Solder	UL94 V-0	Board to Board Cable	3 A	0.079 "	2 mm	105 ░C	-55 C	Beige	All	Push-Pull				5.9 mm	0.232 in	Tin				Shrouded - 4 Wall
Hirose Electric Co Ltd DF3-4P-2DSA(77)		Male Pin	Header				1				4		Through Hole	Brass	Nylon Polyamide (PA)	Square							Kinked Pin Solder	UL94 V-0	Board to Cable/Wire		0.079 "	2 mm	105 ░C	-55 C	Black	All	Push-Pull			250 VAC	5 mm	0.197 "				Gold	Shrouded - 4 Wall	Varies by Wire Gauge	0.114 in	2.9 mm

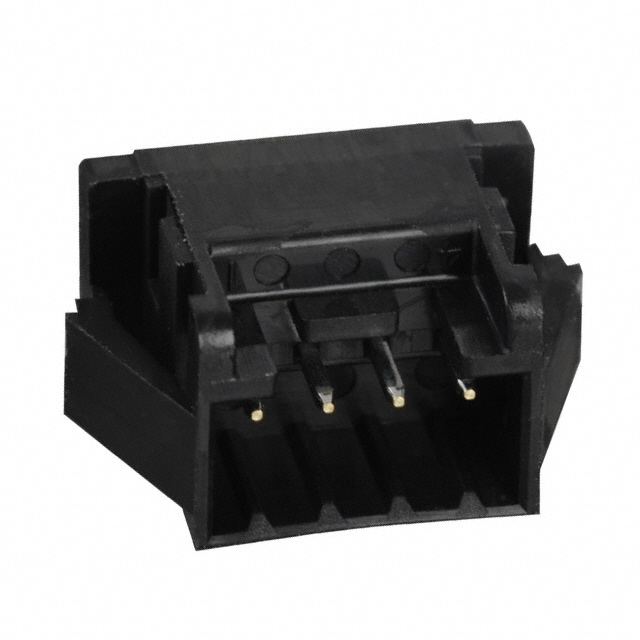

Hirose Electric Co Ltd DF3-4EP-2A							1		0.079 in	2 mm	4		Panel Mount Snap-In																																		Plug Male Pins	Male Pins Plug

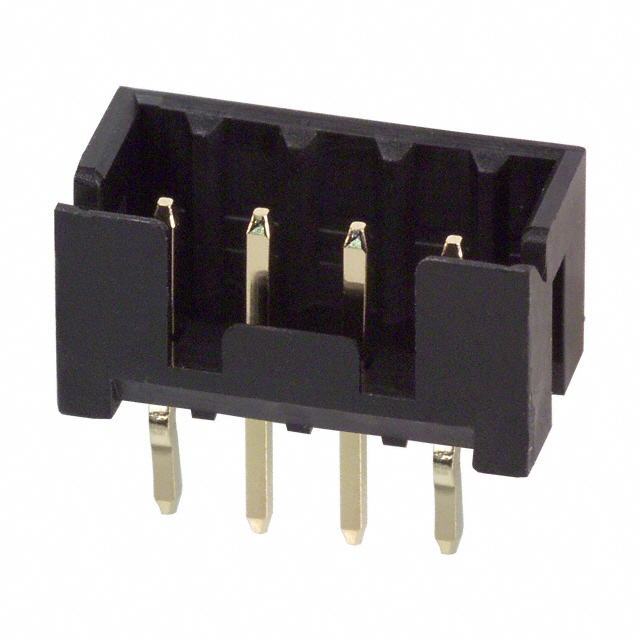

Hirose Electric Co Ltd DF3-4P-2DSA(01)		Male Pin	Header				1				4		Through Hole	Brass	Nylon Polyamide (PA)	Square			8 µin	0.203 µm			Press-Fit Solder	UL94 V-0	Board to Board Cable	3 A	0.079 "	2 mm	105 ░C	-55 C	Black	All	Push-Pull				5 mm	0.197 "				Gold	Shrouded - 4 Wall		0.114 in	2.9 mm			0.299 in 7.6 mm	0.122 in	3.1 mm
