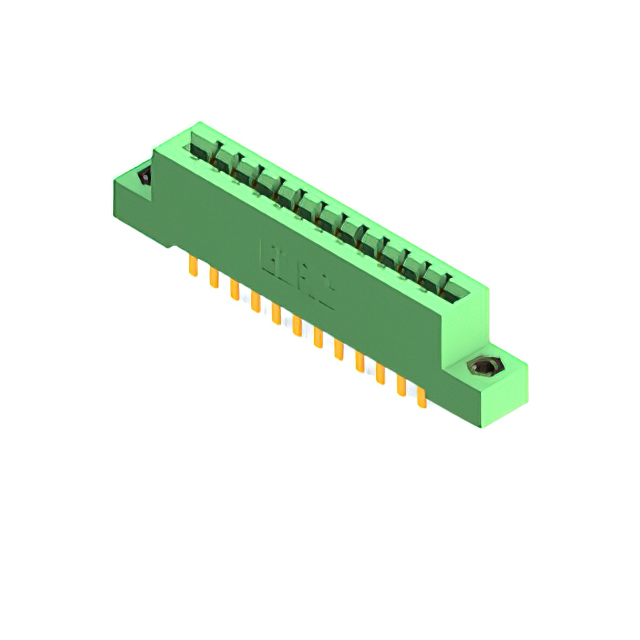

337-024 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 24POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Number of Rows [custom] | Contact Material | Pitch | Pitch | Read Out | Number of Positions | Mounting Type | Features | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Gender | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

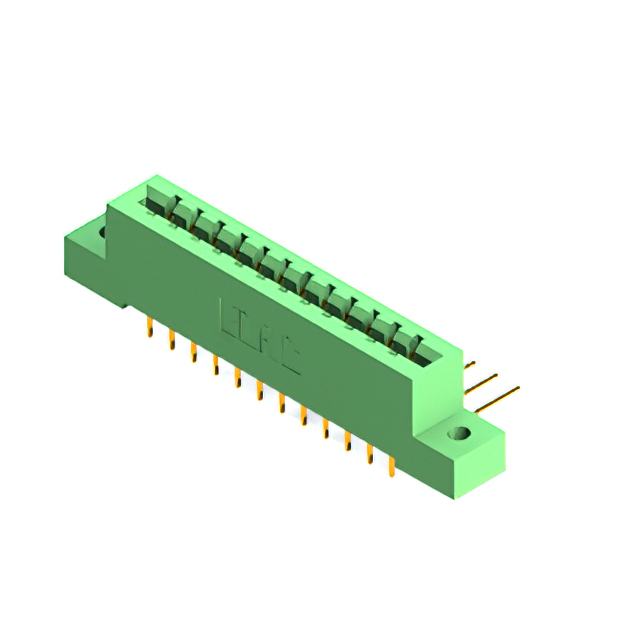

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 0.156 " | 3.96 mm | Solder | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Board Edge Straddle Mount | Card Extender | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||

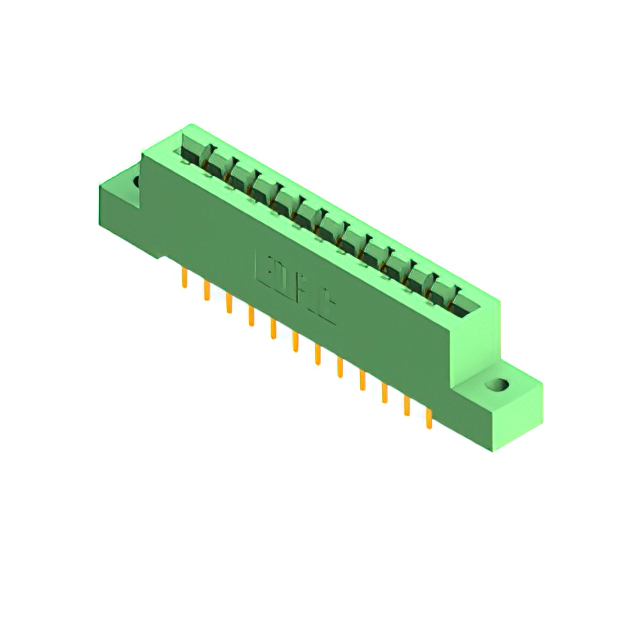

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Wire Wrap | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | |||

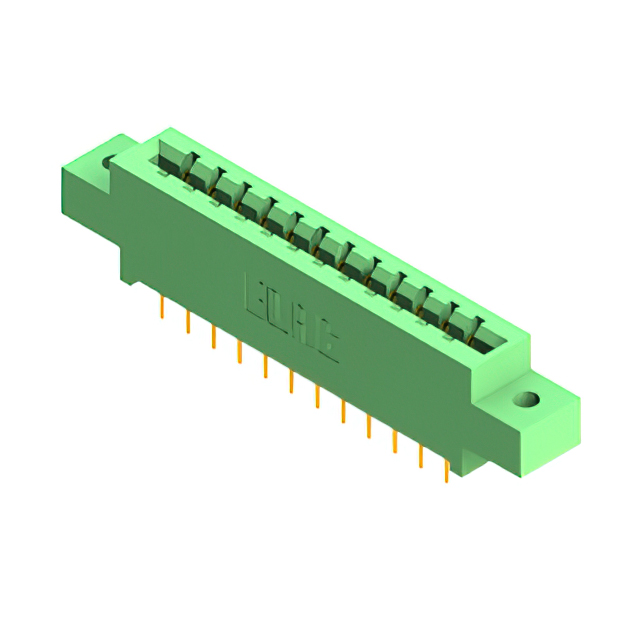

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 0.156 " | 3.96 mm | Wire Wrap | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Single Edge | Wire Wrap | Copper Alloy | 3.96 mm | 0.156 in | Single | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 24 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | ||||||

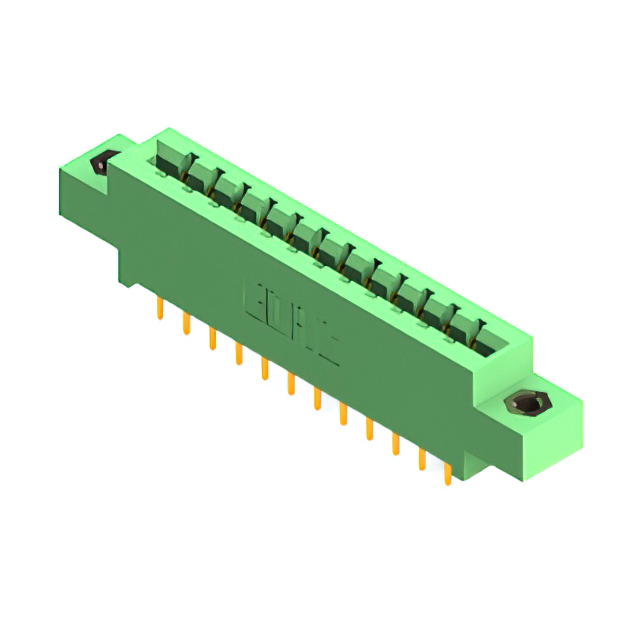

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Wire Wrap | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | |||||

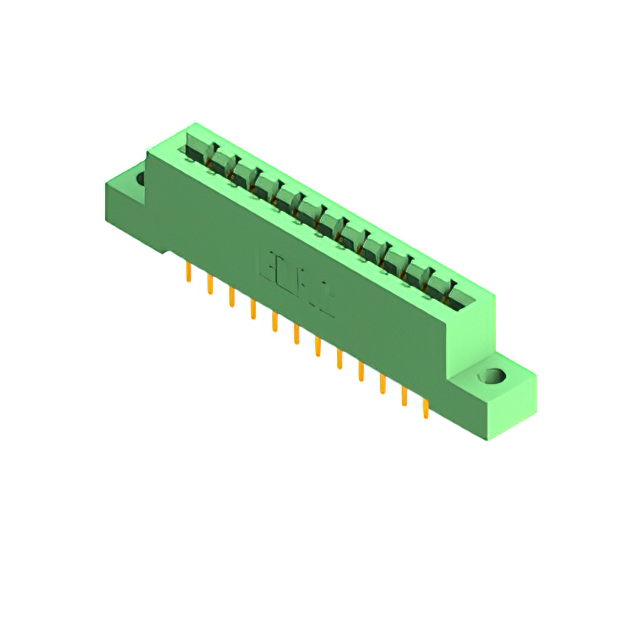

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Solder | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | |||||

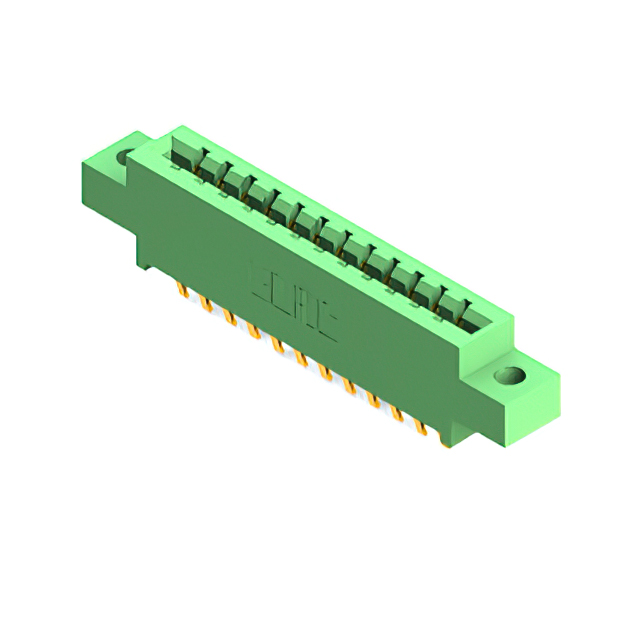

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Solder | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||

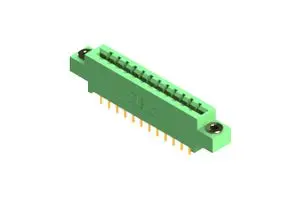

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 0.116 " | 2.95 mm | Wire Wrap | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Single Edge | Wire Wrap | Copper Alloy | 3.96 mm | 0.156 in | Single | 24 | Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 24 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | |||||

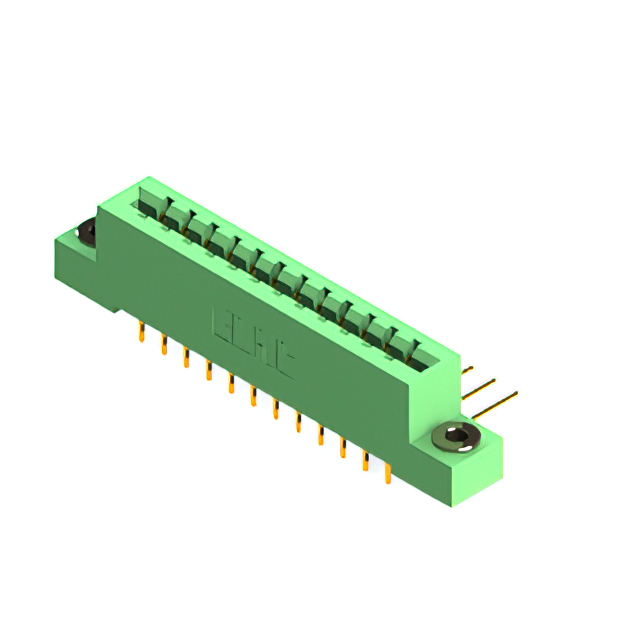

 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 0.116 " | 2.95 mm | Wire Wrap | 2 | Copper Alloy | 3.96 mm | 0.156 in | Dual | 24 | Right Angle Through Hole | Green | 0.25 Ám | 10 Áin | Gold | Female | 12 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount |
