A15754 Series

Manufacturer: Laird Technologies - Thermal Materials

Catalog

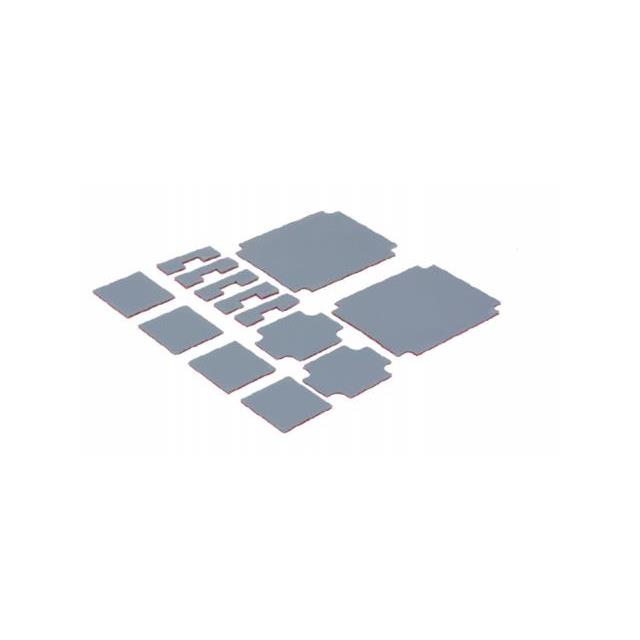

THERM PAD 228.6MMX228.6MM GRAY

Part	Shelf Life	Shelf Life Start	Material	Thickness [custom]	Thickness [custom]	Adhesive	Outline [y]	Outline [x]	Type	Shape	Color	Thermal Resistivity	Thermal Conductivity	Thickness	Thickness
Laird Technologies - Thermal Materials A15754-14	24 Months	Date of Certification	Non-Silicone	3.56 mm	0.14 in	Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K
Laird Technologies - Thermal Materials A15754-15	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.15 in	3.81 mm
Laird Technologies - Thermal Materials A15754-08	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.08 in	80 mils
Laird Technologies - Thermal Materials A15754-05	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.05 in	50 mils
Laird Technologies - Thermal Materials A15754-10	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.1 in	2.54 mm
Laird Technologies - Thermal Materials A15754-06	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.06 in	1.524 mm
Laird Technologies - Thermal Materials A15754-03	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.03 in	0.762 mm
Laird Technologies - Thermal Materials A15754-12	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.12 "	3.05 mm
Laird Technologies - Thermal Materials A15754-16	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.16 "	4.06 mm
Laird Technologies - Thermal Materials A15754-09	24 Months	Date of Certification	Non-Silicone			Tacky - Both Sides	228.6 mm	228.6 mm	Gap Filler Pad Sheet	Square	Gray	0.19 °C/W	7.8 W/m-K	0.09 in	2.286 mm
