HMC253ALC4 Series

GaAs MMIC SP8T Non-reflective Switch SMT, DC to 3.5 GHz

Catalog

GaAs MMIC SP8T Non-reflective Switch SMT, DC to 3.5 GHz

Part	Supplier Device Package	IIP3	Test Frequency	Package / Case	P1dB	RF Type	Frequency Range [Max]	Frequency Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Insertion Loss	Impedance	Mounting Type	Isolation	Utilized IC / Part	Contents	Type	Frequency [Max]	Frequency [Min]	Supplied Contents	For Use With/Related Products
Analog Devices HMC253ALC4	24-CQFN (4x4)	43 dBm	2 GHz	24-TFCQFN Exposed Pad	24 dBm	WiMax	3.5 GHz	0 Hz	85 °C	-40 °C	Absorptive	1.1 dB	50 Ohms	Surface Mount	43 dB

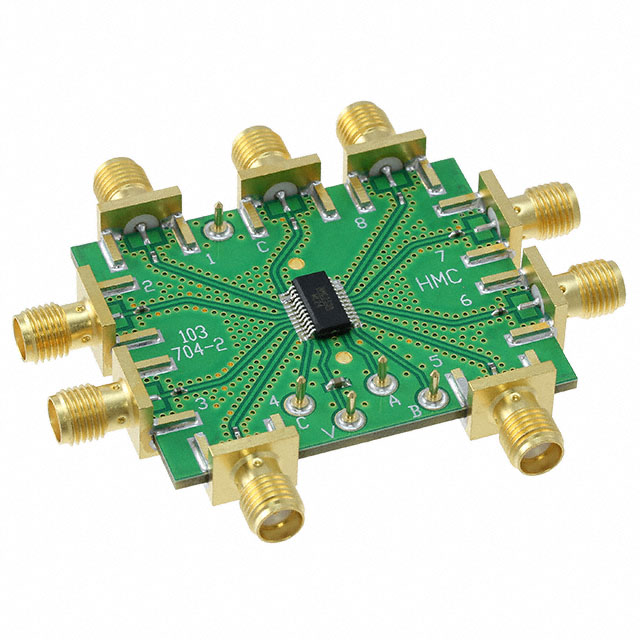

Analog Devices EV1HMC253AQS24																HMC253AQS24	Board(s)	Switch SP8T	2.5 GHz	0 Hz
Analog Devices HMC253ALC4TR-R5	24-QFN (4x4)	43 dBm	2 GHz	24-TFQFN Exposed Pad		WiMax	3.5 GHz	0 Hz	85 °C	-40 °C	Absorptive	1.1 dB	50 Ohms	Surface Mount	43 dB

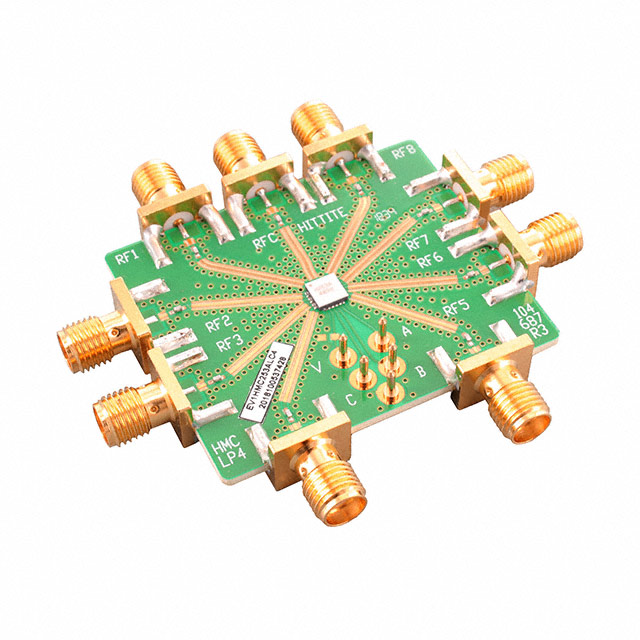

Analog Devices EV1HMC253ALC4																		Switch	3.5 GHz	0 Hz	Board(s)	HMC253ALC4

Catalog

GaAs MMIC SP8T Non-reflective Switch SMT, DC to 3.5 GHz

Key Features

• Ceramic, RoHS Compliant 4x4 mm SMT Package

• Non-Reflective Topology

• Low Insertion Loss: 1.6 dB

• Single Positive Supply: Vdd = +5V

• Integrated 3:8 TTL/CMOS Decoder: 0/+3V

Description

The HMC253ALC4 is a non-reflective SP8T switch in a leadless RoHS compliant 4x4 mm ceramic SMT package featuring wideband operation from DC to 3.5 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility enabling it to operate with 0/+3V control and a +5V supply. A 3:8 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC253ALC4 SP8T will replace multiple configurations of SP4T and SPDT MMIC switches.ApplicationsBasestations & RepeatersWiMAX/WiBro, and Fixed WirelessCellular/3G infrastructureCATV/DBSMilitary & Hi-Rel
