AME10 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 12V 11W

Part	Package / Case	Applications	Type	Line Regulation	Weight	Weight	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Mounting Type	Load Regulation	Efficiency	Current - Output (Max) [Max]	Number of Outputs	Power (Watts)	Current - Output (Max)	Standard Number	Load Regulation
aimtec AME10-12SCJZ	8-DIP Module 5 Leads	ITE (Commercial)	Enclosed	0.5 %	0.176 lb	80 g	85 VAC 120 VDC	264 VAC 370 VDC	CE cURus	70 °C	-25 °C	12 V	1.77 in	45 mm	21 mm	2.17 "	0.83 "	55 mm	Universal Input	Through Hole	±1%	80 %	900 mA	1	11 W
aimtec AME10-524DCVZ	8-DIP Module	ITE (Commercial)	Enclosed		0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				5 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		80 %		2	10 W	0.2 A 1 A	62368-1
aimtec AME10-15DCVZ-B	8-DIP Module	ITE (Commercial)	Enclosed	1.5 %	0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				15 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		81 %		2	10 W	350 mA	62368-1	2 %
aimtec AME10-515DCVZ-B	8-DIP Module	ITE (Commercial)	Enclosed		0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				5 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		79 %		2	10 W	0.2 A 1.4 A	62368-1
aimtec AME10-505DCVZ	8-DIP Module	ITE (Commercial)	Enclosed		0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				5 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		75 %		2	10 W	0.2 A 1.8 A	62368-1
aimtec AME10-15DCJZ	8-DIP Module 6 Leads	ITE (Commercial)	Enclosed	1.5 %	0.176 lb	80 g	85 VAC 120 VDC	264 VAC 370 VDC	CE cURus	70 °C	-25 °C	15 V	1.77 in	45 mm	21 mm	2.17 "	0.83 "	55 mm	Universal Input	Through Hole		81 %		2	11 W	350 mA		2 %
aimtec AME10-512TCVZ	8-DIP Module	ITE (Commercial)	Enclosed		0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				5 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		75 %		3	9.8 W	0.2 A 1 A	62368-1
aimtec AME10-15DCVZ	8-DIP Module	ITE (Commercial)	Enclosed	1.5 %	0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				15 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		81 %		2	10 W	350 mA	62368-1	2 %
aimtec AME10-515TCVZ	8-DIP Module	ITE (Commercial)	Enclosed		0.165 lb	75 g	85 VAC 100 V	264 VAC 370 VDC				5 V	1.77 in	45 mm	21 mm	2.17 "	0.82 "	55 mm	Universal Input	Through Hole		75 %		3	11 W	0.2 A 900 mA	62368-1

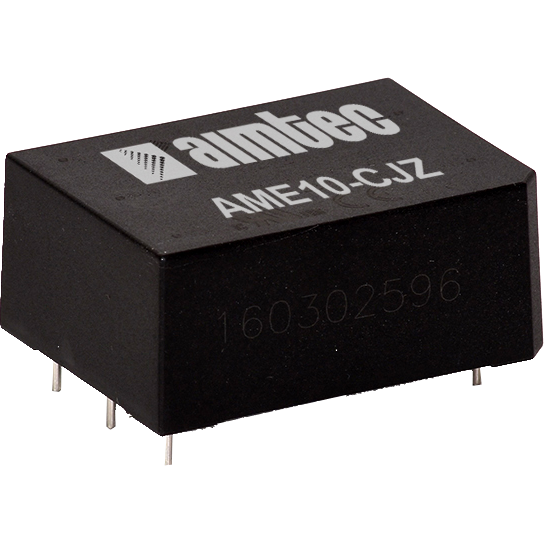

aimtec AME10-524DCJZ	8-DIP Module 7 Leads	ITE (Commercial)	Enclosed	1.5 %	0.176 lb	80 g	85 VAC 120 VDC	264 VAC 370 VDC	CE cURus	70 °C	-25 °C	5 V	1.77 in	45 mm	21 mm	2.17 "	0.83 "	55 mm	Universal Input	Through Hole		81 %		2	9.8 W	0.2 A 1 A		2 %
