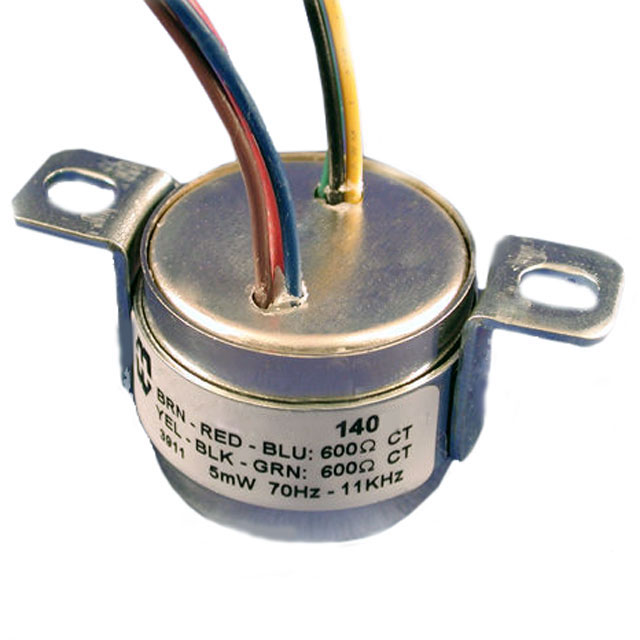

140P Series

Catalog

XFMR 600 150/150 / 2.4K, 600/600

Part	DC Resistance (DCR) - Primary	Mounting Type	Frequency Response	Return Loss	DC Resistance (DCR) - Secondary	Termination Style	Voltage - Isolation	Impedance - Primary (Ohms) [Max]	Impedance - Primary (Ohms) [Min]	Impedance - Primary (Ohms)	Size / Dimension [diameter]	Size / Dimension	Turns Ratio - Primary:Secondary	Frequency Range [Max]	Frequency Range [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)	Power Level	Impedance - Secondary (Ohms) [Min]	Impedance - Secondary (Ohms)	Impedance - Secondary (Ohms) [Max]	Insertion Loss
Hammond Manufacturing 140PEX	58 Ohm	Chassis Mount	1 dB	30 dB	190 Ohm	Screw Terminal	500 Vrms	150 Ohms	150 Ohms	600 Ohms	1.25 "	1.25 in	1:1 1:2 1:4	20 kHz	20 Hz	1 in	25.4 mm	10 dB	600 Ohms	2.4k	600 Ohms	0.8 dB
