RM15TJD Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN JACK FMALE 12 POS
| Part | Orientation | Connector Type | Current Rating (Amps) | Mounting Type | Fastening Type | Shell Size - Insert [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Primary Material | Material Flammability Rating | Insert Material | Cable Opening | Cable Opening | Shielding | Contact Material | Backshell Material, Plating | Color | Shell Finish | Contact Finish - Mating | Shell Material | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

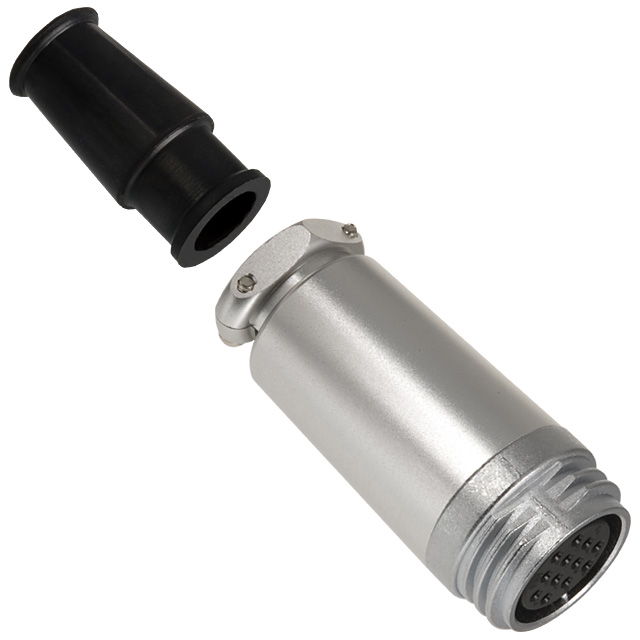

 Hirose Electric Co Ltd | Keyed | Jack Female Sockets | 5 A | Free Hanging (In-Line) | Threaded | 15 | 85 °C | -25 °C | 350 VAC 490 VDC | 12 | |||||||||||||||
Hirose Electric Co Ltd | Keyed | Jack Female Sockets | 5 A | Free Hanging (In-Line) | Threaded | 15 | 85 °C | -25 °C | 350 VAC 490 VDC | 10 | Metal | UL94 V-0 | Diallyl Phthalate (DAP) | 9.8 mm | 0.386 in | Unshielded | Copper Alloy | Chrome Zinc Alloy | Silver | Chrome | Silver | Zinc Alloy | Backshell Cable Clamp Strain Relief | ||

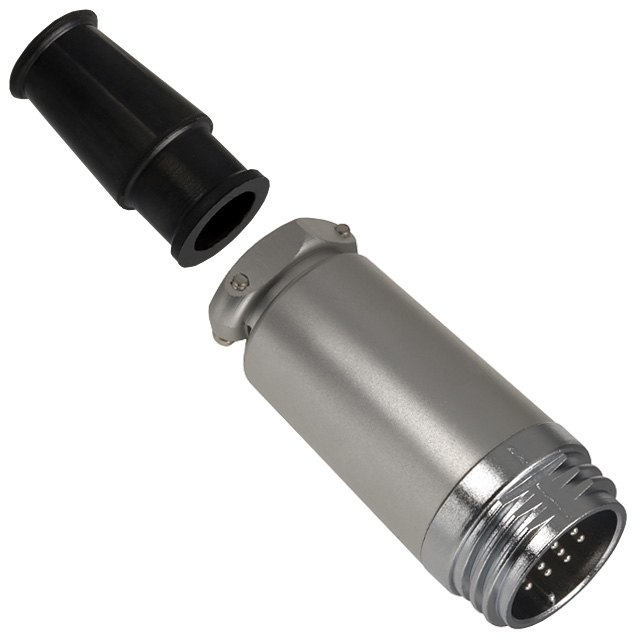

Hirose Electric Co Ltd | Keyed | Jack Male Pins | 5 A | Free Hanging (In-Line) | Threaded | 15 | 85 °C | -25 °C | 350 VAC 490 VDC | 12 | Metal | UL94 V-0 | Diallyl Phthalate (DAP) | 9.8 mm | 0.386 in | Brass | Aluminum Alloy Chrome | Silver | Chrome | Silver | Zinc Alloy | Backshell Cable Clamp Strain Relief | 4 µm | 157.5 µin | |
 Hirose Electric Co Ltd | Keyed | Jack Male Pins | 5 A | Free Hanging (In-Line) | Threaded | 15 | 85 °C | -25 °C | 350 VAC 490 VDC | 12 |
