TMR 4 Series

Catalog

4 WATT DC/DC CONVERTER, INDUSTRI

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Efficiency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Package / Case	Applications	Approval Agency	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Voltage - Output 2	Current - Output (Max)
Traco Power TMR 4-4813	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	36 V	Through Hole	1	83 %	Isolated Module	85 °C	-40 C	15 V	4 W	266 mA	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	75 V	Remote On/Off
Traco Power TMR 4-2422WI	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	9 V	Through Hole	2	83 %	Isolated Module	85 °C	-40 C	12 V	4 W	166 mA	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	36 V	Remote On/Off	-12 V
Traco Power TMR 4-4822WI	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	18 V	Through Hole	2		Isolated Module	85 °C	-40 C	12 V	4 W	166 mA	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	75 V	Remote On/Off	-12 V
Traco Power TMR 4-4823WI	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	18 V	Through Hole	2		Isolated Module	85 °C	-40 C	15 V	4 W		8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	75 V	Remote On/Off	-15 V	133 mA

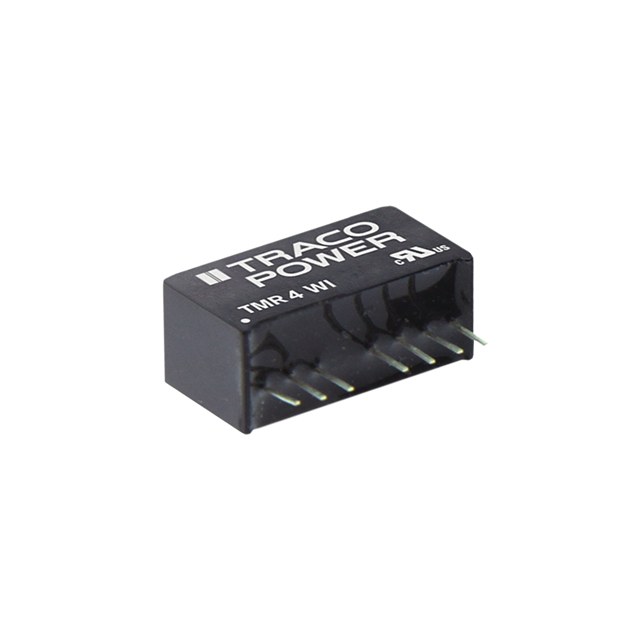

Traco Power TMR 4-2412WI	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	9 V	Through Hole	1	83 %	Isolated Module	85 °C	-40 C	12 V	4 W	333 mA	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	36 V	Remote On/Off
Traco Power TMR 4-2412	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	18 V	Through Hole	1	86 %	Isolated Module	85 °C	-40 C	12 V	4 W	333 mA	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	36 V	Remote On/Off
Traco Power TMR 4-4811WI	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	18 V	Through Hole	1	78 %	Isolated Module	85 °C	-40 C	5 V	4 W	0.8 A	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	75 V	Remote On/Off
Traco Power TMR 4-1223	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	9 V	Through Hole	2	86 %	Isolated Module	85 °C	-40 C	15 V	4 W		8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	18 V	Remote On/Off	-15 V	133 mA
Traco Power TMR 4-4811	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	36 V	Through Hole	1	80 %	Isolated Module	85 °C	-40 C	5 V	4 W	0.8 A	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	75 V	Remote On/Off
Traco Power TMR 4-2415WI	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	9 V	Through Hole	1	83 %	Isolated Module	85 °C	-40 C	24 V	4 W	166 mA	8-SIP Module 7 Leads	ITE (Commercial)	CB cURus UL	1.92 kV	36 V	Remote On/Off
