L9733 Series

Catalog

OCTAL CONFIGURABLE LOW/HIGH SIDE DRIVER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Number of Outputs	Output Type	Features	Current - Output (Max) [Max]	Ratio - Input:Output	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Rds On (Typ)	Switch Type	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Output Configuration	Input Type

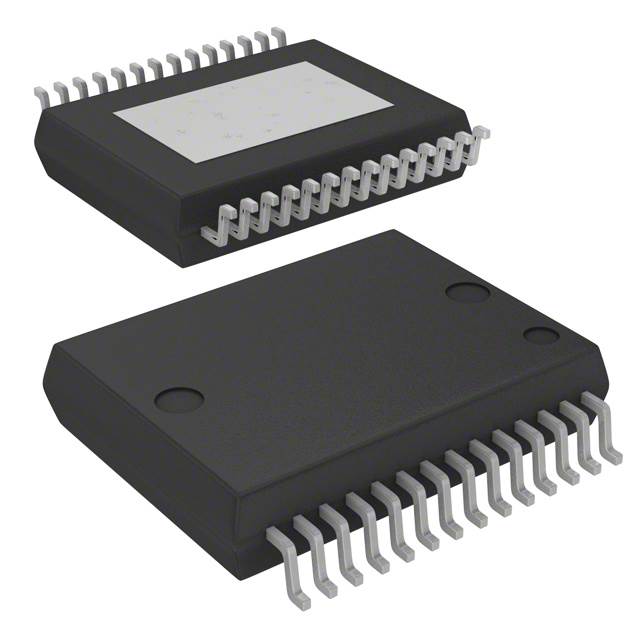

STMicroelectronics L9733CN	125 °C	-40 °C	Open Load Detect Over Temperature	8	N-Channel	PWM Input	1 A	1:8	Surface Mount	4.5 V	5.5 V	PowerSSO-28	700 mOhm	General Purpose	28-SSOP (0.295" 7.50mm Width) Exposed Pad	4.5 V	18 V	SPI	High Side or Low Side	Non-Inverting
STMicroelectronics L9733XP	125 °C	-40 °C	Open Load Detect Over Temperature	8	N-Channel	PWM Input	1 A	1:8	Surface Mount	4.5 V	5.5 V	PowerSSO-28 Exposed Pad	700 mOhm	General Purpose	28-SSOP (0.295" 7.50mm Width) Exposed Pad	4.5 V	18 V	SPI	High Side or Low Side	Non-Inverting
STMicroelectronics L9733XPTR	125 °C	-40 °C	Open Load Detect Over Temperature	8	N-Channel	PWM Input	1 A	1:8	Surface Mount	4.5 V	5.5 V	PowerSSO-28 Exposed Pad	700 mOhm	General Purpose	28-SSOP (0.295" 7.50mm Width) Exposed Pad	4.5 V	18 V	SPI	High Side or Low Side	Non-Inverting
STMicroelectronics L9733CNTR	125 °C	-40 °C	Open Load Detect Over Temperature	8	N-Channel	PWM Input	1 A	1:8	Surface Mount	4.5 V	5.5 V	PowerSSO-28	700 mOhm	General Purpose	28-SSOP (0.295" 7.50mm Width) Exposed Pad	4.5 V	18 V	SPI	High Side or Low Side	Non-Inverting
