FH63S Series

Catalog

FFC & FPC CONNECTORS 40 POSITION FFC FPC CONNECTOR

Part	Actuator Color	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Mating Cycles	Voltage Rating	Features	Contact Finish	Connector/Contact Type	Contact Material	Pitch	Pitch	Flat Flex Type	Locking Feature	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Termination	Housing Material	Number of Positions	Material Flammability Rating	Cable End Type	Mounting Type	FFC, FCB Thickness
Hirose Electric Co Ltd FH63S-40S-0.5SH(99)	Black	0.5 A	1.25 Áin	0.03 Ám	Gray	10	50 V	Solder Retention	Gold	Contacts Bottom	Copper Alloy	0.02 "	0.5 mm	FFC FPC	Backlock Flip Lock	2.8 mm	0.11 in	-55 C	125 °C	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Liquid Crystal Polymer (LCP) Halogen Free	40	UL94 V-0	Notched	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd FH63S-10S-0.5SH(99)	Black	0.5 A	1.25 Áin	0.03 Ám	Gray	10	50 V	Solder Retention	Gold	Contacts Bottom	Copper Alloy	0.02 "	0.5 mm	FFC FPC	Backlock Flip Lock	2.8 mm	0.11 in	-55 C	125 °C	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Liquid Crystal Polymer (LCP) Halogen Free	10	UL94 V-0	Notched	Right Angle Surface Mount	0.3 mm

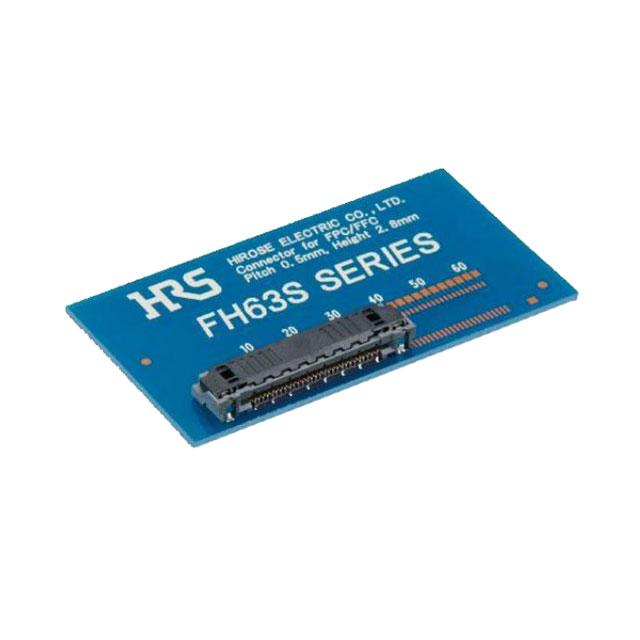

Hirose Electric Co Ltd FH63S-10S-0.5SH	Black	0.5 A	1.25 Áin	0.03 Ám	Gray	10	50 V	Solder Retention	Gold	Contacts Bottom	Copper Alloy	0.02 "	0.5 mm	FFC FPC	Backlock Flip Lock	2.8 mm	0.11 in	-55 C	125 °C	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Liquid Crystal Polymer (LCP) Halogen Free	10	UL94 V-0	Notched	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd FH63S-30S-0.5SH(99)	Black	0.5 A	1.25 Áin	0.03 Ám	Gray	10	50 V	Solder Retention	Gold	Contacts Bottom	Copper Alloy	0.02 "	0.5 mm	FFC FPC	Backlock Flip Lock	2.8 mm	0.11 in	-55 C	125 °C	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Liquid Crystal Polymer (LCP) Halogen Free	30	UL94 V-0	Notched	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd FH63S-40S-0.5SH	Black	0.5 A	1.25 Áin	0.03 Ám	Gray	10	50 V	Solder Retention	Gold	Contacts Bottom	Copper Alloy	0.02 "	0.5 mm	FFC FPC	Backlock Flip Lock	2.8 mm	0.11 in	-55 C	125 °C	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Liquid Crystal Polymer (LCP) Halogen Free	40	UL94 V-0	Notched	Right Angle Surface Mount	0.3 mm

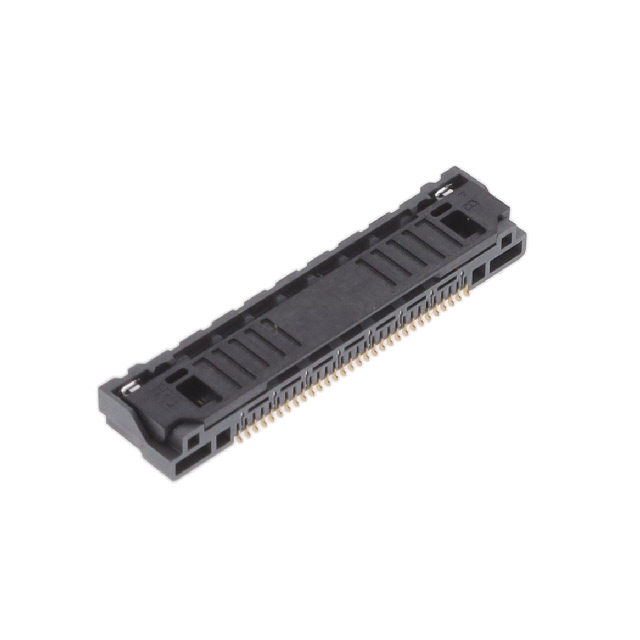

Hirose Electric Co Ltd FH63S-30S-0.5SH	Black	0.5 A	1.25 Áin	0.03 Ám	Gray	10	50 V	Solder Retention	Gold	Contacts Bottom	Copper Alloy	0.02 "	0.5 mm	FFC FPC	Backlock Flip Lock	2.8 mm	0.11 in	-55 C	125 °C	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Liquid Crystal Polymer (LCP) Halogen Free	30	UL94 V-0	Notched	Right Angle Surface Mount	0.3 mm
