AMED60 Series

Manufacturer: aimtec

Catalog

AC/DC DIN RAIL SUPPLY 5V 33W

Part	Voltage - Output 1	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Power (Watts)	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Efficiency	Input Type	DC Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features	Number of Outputs
aimtec AMED60-5SNZ	5 V	264 VAC	85 VAC	33 W	120 V	4000 V	6.5 A	ITE (Commercial)	84 %	AC or DC	370 V	70 °C	-40 C	52 mm	2.05 in	92.7 mm	3.65 in	58 mm	2.28 "	Universal Input	1

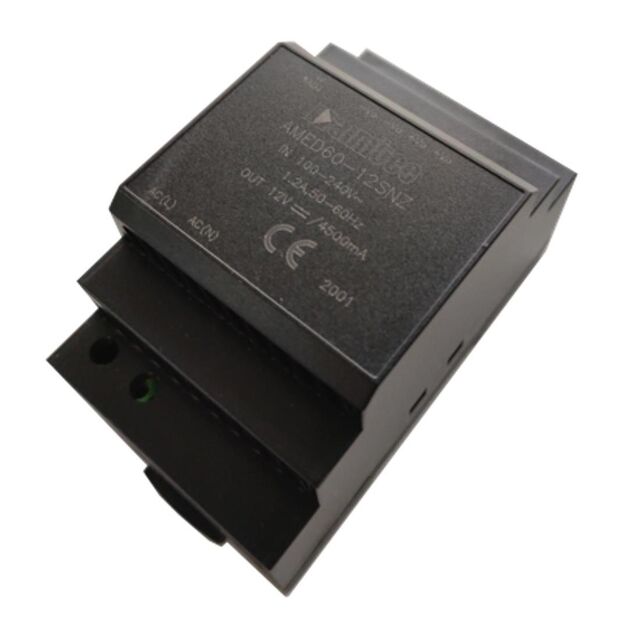

aimtec AMED60-12SNZ	12 V	264 VAC	85 VAC	54 W	120 V	4000 V	4.5 A	ITE (Commercial)	88 %	AC or DC	370 V	70 °C	-40 C	52 mm	2.05 in	92.7 mm	3.65 in	58 mm	2.28 "	Universal Input	1
