BNC(75) Series
RF Connectors / Coaxial Connectors BNC75 Plug Straight crimp
Manufacturer: Hirose Electric Co Ltd
Catalog
RF Connectors / Coaxial Connectors BNC75 Plug Straight crimp
Beta
⌘K
RF Connectors / Coaxial Connectors BNC75 Plug Straight crimp
RF Connectors / Coaxial Connectors BNC75 Plug Straight crimp
RF Connectors / Coaxial Connectors BNC75 Plug Straight crimp
| Part | Center Contact Plating | Mating Cycles | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Number of Ports | Impedance | Center Contact Material | Connector Type | Frequency - Max [Max] | Connector Style | Mounting Type | Housing Color | Fastening Type | Shield Termination | Contact Termination | Includes | Convert To (Adapter End) | Adapter Series | Conversion Type | Mounting Feature | Convert From (Adapter End) | Adapter Type | Style | Cable Group | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

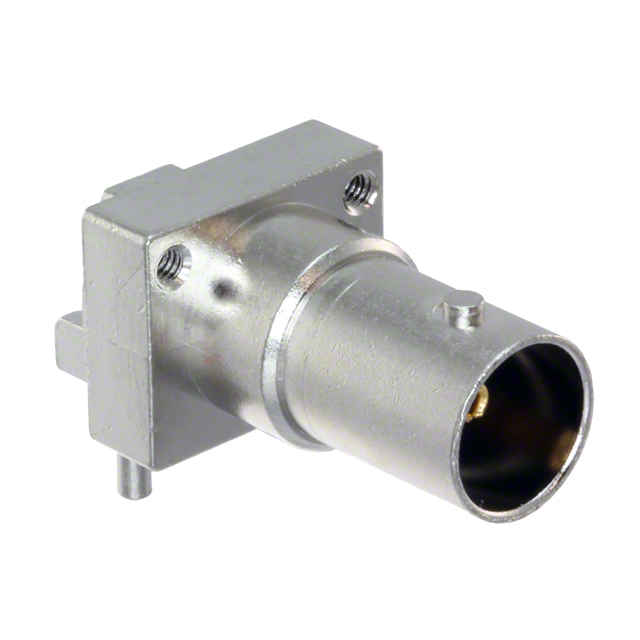

 Hirose Electric Co Ltd | Gold | 5000 | Zinc Alloy | Nickel | 85 °C | -40 C | Syndiotactic Polystyrene (SPS) | 1 | 75 Ohms | Beryllium Copper | Female Socket Jack | 12 GHz | BNC | Right Angle Through Hole | Silver | Bayonet Lock | Solder | Solder | ||||||||||
Hirose Electric Co Ltd | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | 75 Ohms | 2 GHz | Panel Mount | Bayonet Lock Snap-On | 1 Connector 1 Lockwasher 1 Nut | H.FL Jack Male Pin | BNC to H.FL | Between Series | Bulkhead | BNC Jack Female Socket | Jack to Jack | Straight | ||||||||||||
 Hirose Electric Co Ltd | Gold | 500 | Brass | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | 1 | 75 Ohms | Brass | Plug Male Pin | 2 GHz | BNC | Free Hanging (In-Line) | Silver | Bayonet Lock | Crimp | Solder | 1.5C-QEV.CW | |||||||||
Hirose Electric Co Ltd | Gold | 1000 | Brass | Nickel | 85 °C | -55 C | Polytetrafluoroethylene (PTFE) | 1 | 75 Ohms | Beryllium Copper | Female Socket Jack | 1.5 GHz | BNC | Right Angle Through Hole | Silver | Bayonet Lock | Solder | Solder | ||||||||||
 Hirose Electric Co Ltd | Gold | 500 | Brass | Nickel | 60 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | 1 | 75 Ohms | Beryllium Copper | Female Socket Jack | 2 GHz | BNC | Panel Mount | Silver | Bayonet Lock | Solder | Solder | 1 Nut 1 Washer 3 pcs - 1 Connector | Bulkhead - Front Side Nut | 1.5C-2V | 150 VDC | ||||||
Hirose Electric Co Ltd | Gold | 500 | Brass | Nickel | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | 1 | 75 Ohms | Brass | Plug Male Pin | 2 GHz | BNC | Free Hanging (In-Line) | Silver | Bayonet Lock | Crimp | Solder | 1.5C-QEV.CW | |||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||

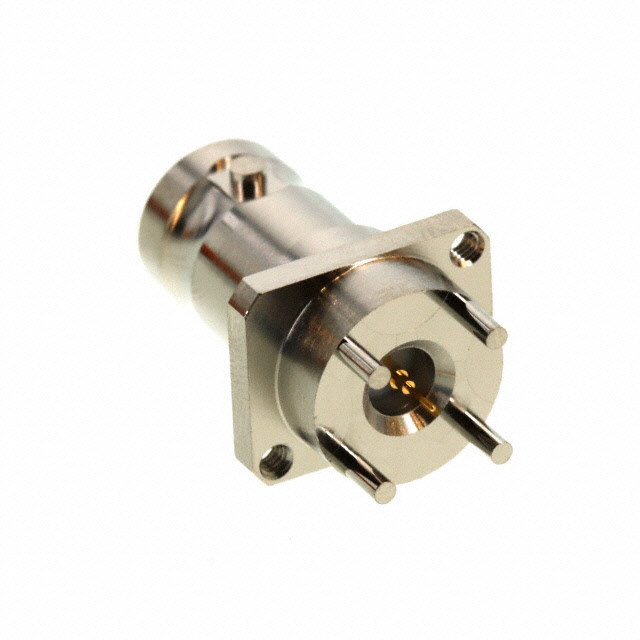

 Hirose Electric Co Ltd | Gold | Brass | Nickel | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | 1 | 75 Ohms | Phosphor Bronze | Female Socket Jack | 12 GHz | BNC | Panel Mount Through Hole | Silver | Bayonet Lock | Solder | Solder | Flange | ||||||||||
Hirose Electric Co Ltd | Gold | Brass | Nickel | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | 75 Ohms | Beryllium Copper | 3 GHz | Panel Mount | Bayonet Lock Snap-On | 1 Connector 1 Lockwasher 1 Nut | H.FL Jack Male Pin | BNC to H.FL | Between Series | Bulkhead | BNC Jack Female Socket | Jack to Jack | Straight | |||||||||
 Hirose Electric Co Ltd | Gold | Zinc Alloy | Nickel | 85 °C | -40 C | Syndiotactic Polystyrene (SPS) | 1 | 75 Ohms | Beryllium Copper | Female Socket Jack | 12 GHz | BNC | Panel Mount Right Angle Through Hole | Silver | Bayonet Lock | Solder | Solder | Flange |
