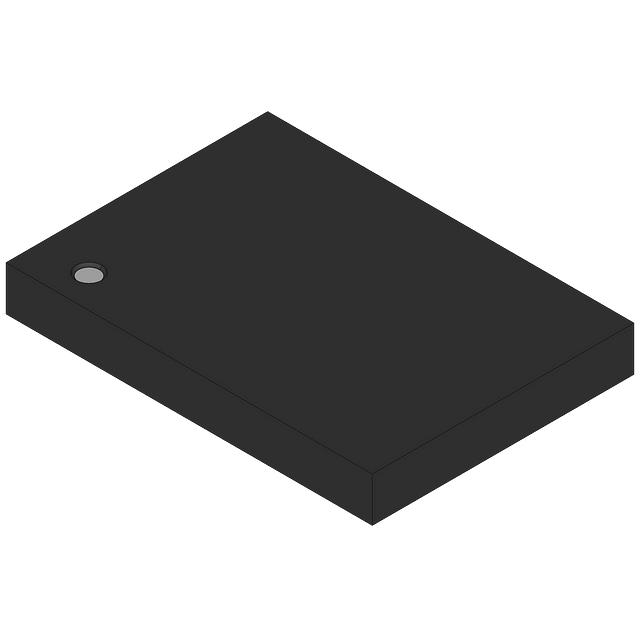

FDMA7628 Series

Single N-Channel 1.5 V Specified PowerTrench® MOSFET 20V, 9.4A, 14.5mΩ

Catalog

Single N-Channel 1.5 V Specified PowerTrench® MOSFET 20V, 9.4A, 14.5mΩ

Part	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	FET Type	Technology	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Supplier Device Package	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]
ON Semiconductor FDMA7628	Surface Mount	17.5 nC	14.5 mOhm	N-Channel	MOSFET (Metal Oxide)	8 V	9.4 A	1680 pF	1.9 W	1.5 V 4.5 V	20 V	6-MicroFET (2x2)	1 V	-55 °C	150 °C

Catalog

Single N-Channel 1.5 V Specified PowerTrench® MOSFET 20V, 9.4A, 14.5mΩ

Key Features

• Max rDS(on)= 14.5 mΩ at VGS= 4.5 V, ID= 9.4 A

• Max rDS(on)= 18.2 mΩ at VGS= 2.5 V, ID= 8.3 A

• Max rDS(on)= 23.3 mΩ at VGS= 1.8 V, ID= 7.3 A

• Max rDS(on)= 32.3 mΩ at VGS= 1.5 V, ID= 6.2 A

• Low Profile -0.8 mm maximum in the new package MicroFET 2x2 mm

• RoHS Compliant

Description

This Single N-Channel MOSFET has been designed using ON Semiconductor Semiconductor's advanced Power Trench®process to optimize the rDS(ON)@ VGS= 1.5 V on special MicroFET leadframe.
